Details

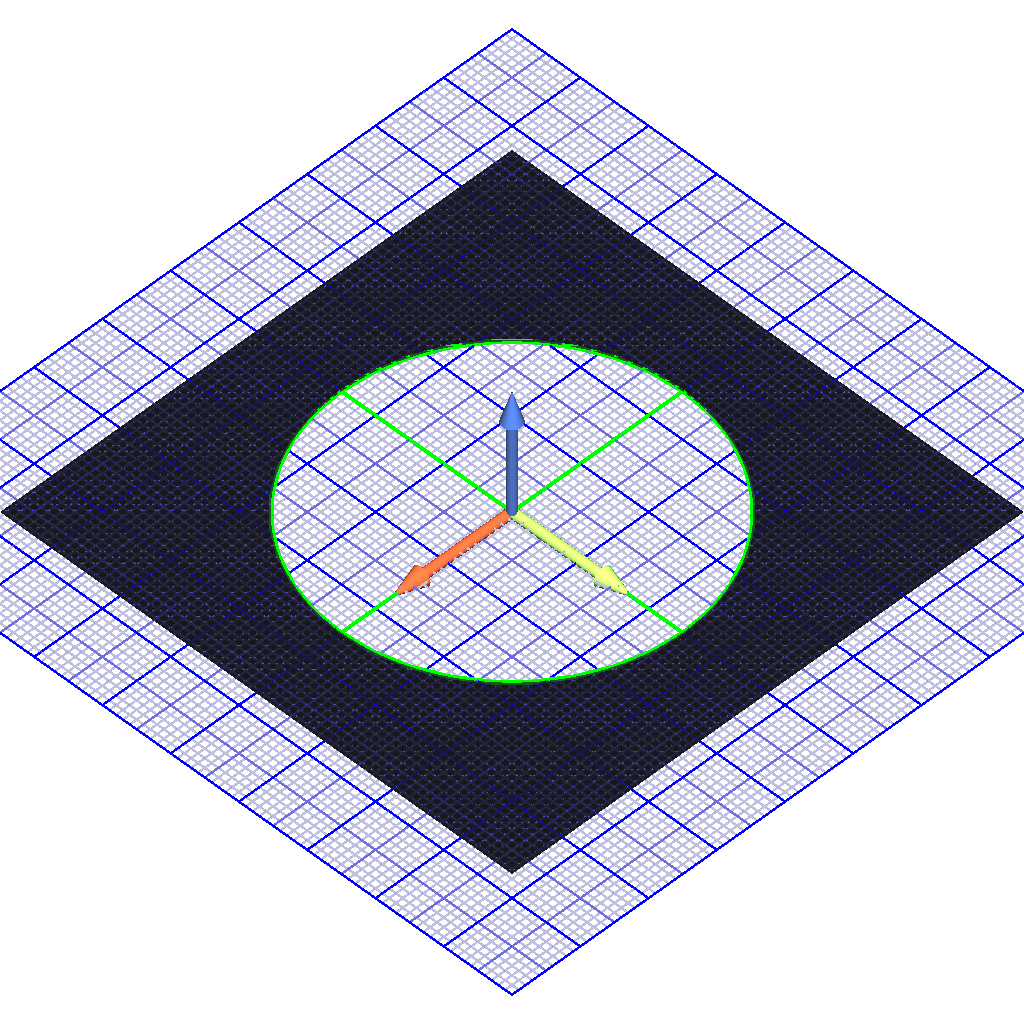

ApertureStop represents an infinite, opaque plane with a circular aperture in the middle with adjustable diameter. The outer rectangular frame size can also be adjusted for representation purposes in the 3D views of the element, but this has no effect on how much light is blocked.

Properties

Name	Description	Default	Units
ApertureStop
radius	Aperture radius	0.025	m
diameter	Aperture diameter	0.05	m
width	Width of the stop mask	0.075	m
height	Height of the stop mask	0.075	m
Element
blue	Blue channel of the solid color of the element	0.25	0..1
green	Green channel of the solid color of the element	0.25	0..1
red	Red channel of the solid color of the element	0.25	0..1
shiny	Specular component intensity	63	0..127
specBlue	Blue channel of the specular color of the element	0.25	0..1
specGreen	Green channel of the specular color of the element	0.25	0..1
specRed	Red channel of the specular color of the element	0.25	0..1

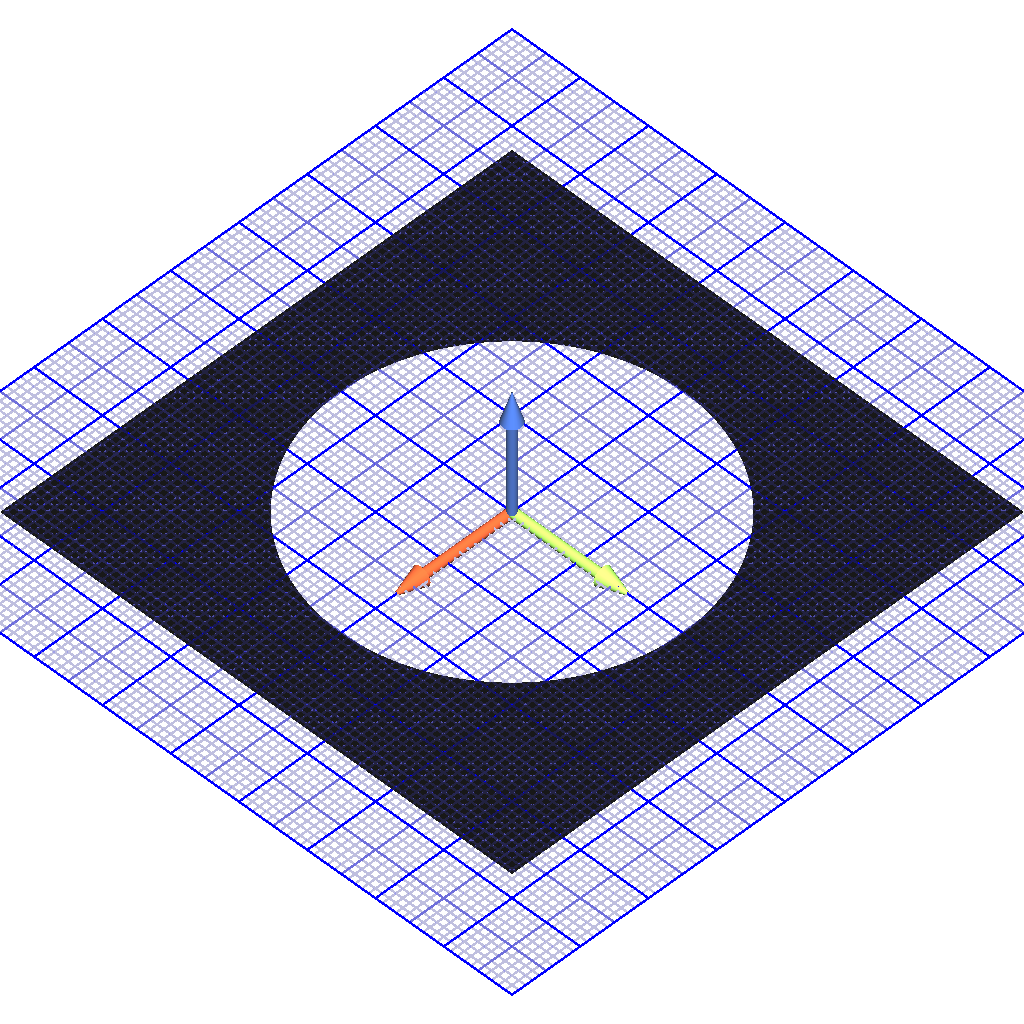

Reference frames

Optical surfaces


stopSurf: ApertureStopBoundary(CircularFlat, ReflectiveEMInterface)
