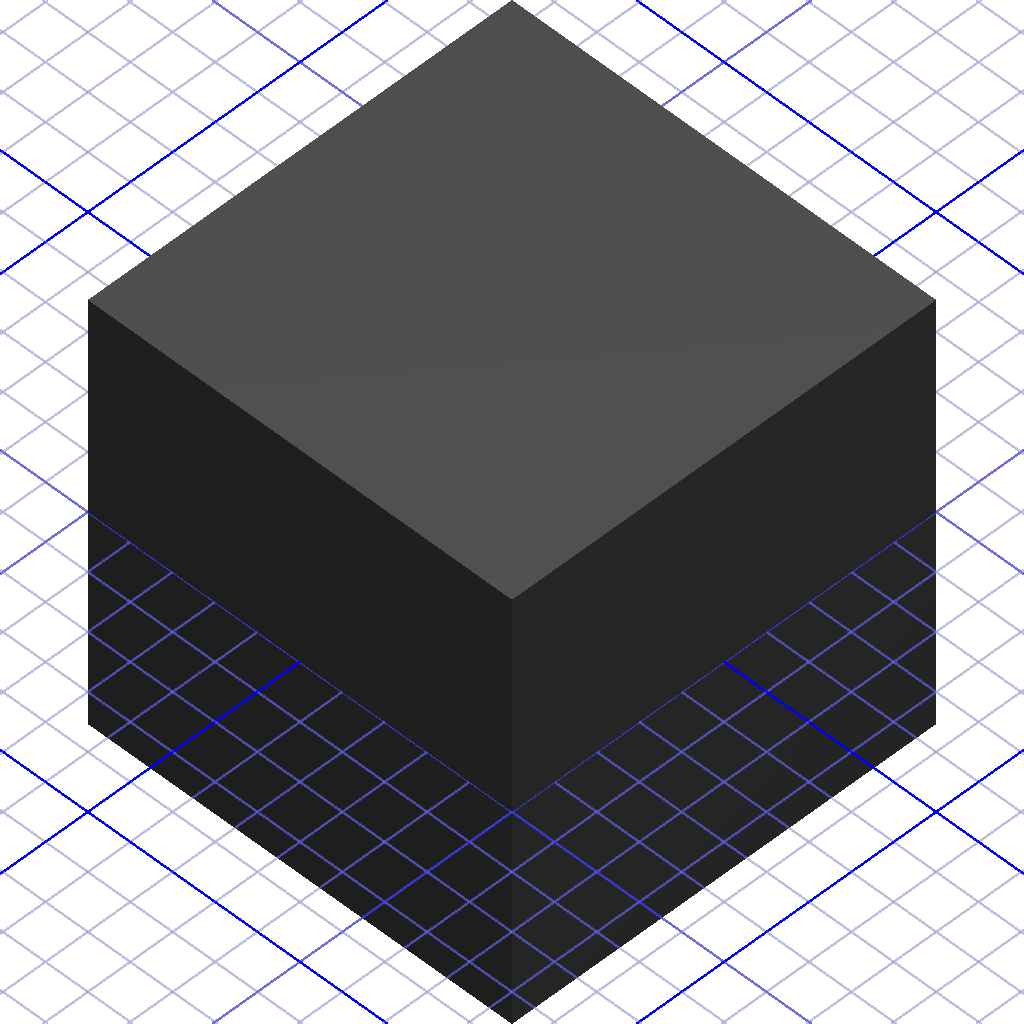

BlockElement

Rectangular prism with adjustable dimensions.

Specialization of Element

Properties

Name	Description	Default	Units
BlockElement
length	Length (X dimension) of the block	1.0	m
width	Width (Y dimension) of the block	1.0	m
height	Height (Z dimension) of the block	1.0	m
wireFrame	Represent as wireframe only	False
Element
blue	Blue channel of the solid color of the element	0.25	0..1
green	Green channel of the solid color of the element	0.25	0..1
red	Red channel of the solid color of the element	0.25	0..1
shiny	Specular component intensity	63	0..127
specBlue	Blue channel of the specular color of the element	0.25	0..1
specGreen	Green channel of the specular color of the element	0.25	0..1
specRed	Red channel of the specular color of the element	0.25	0..1

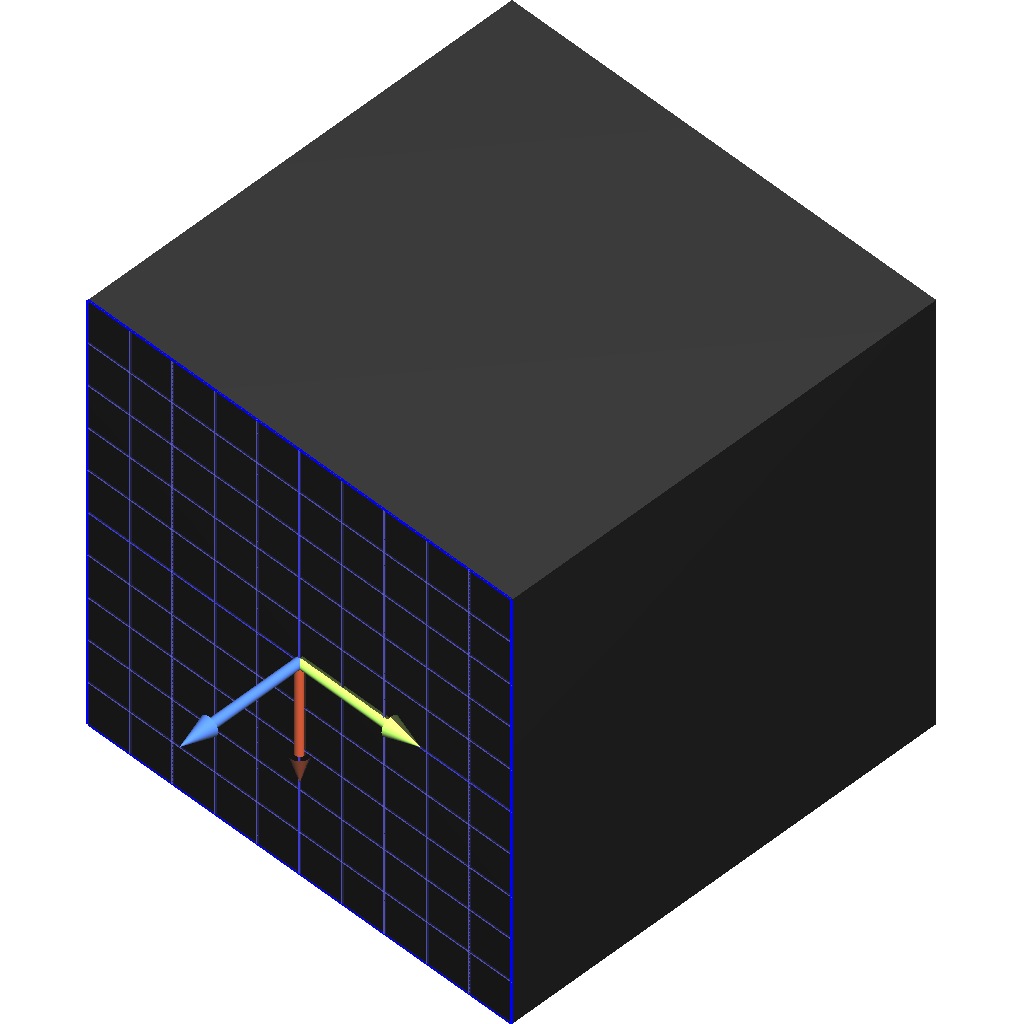

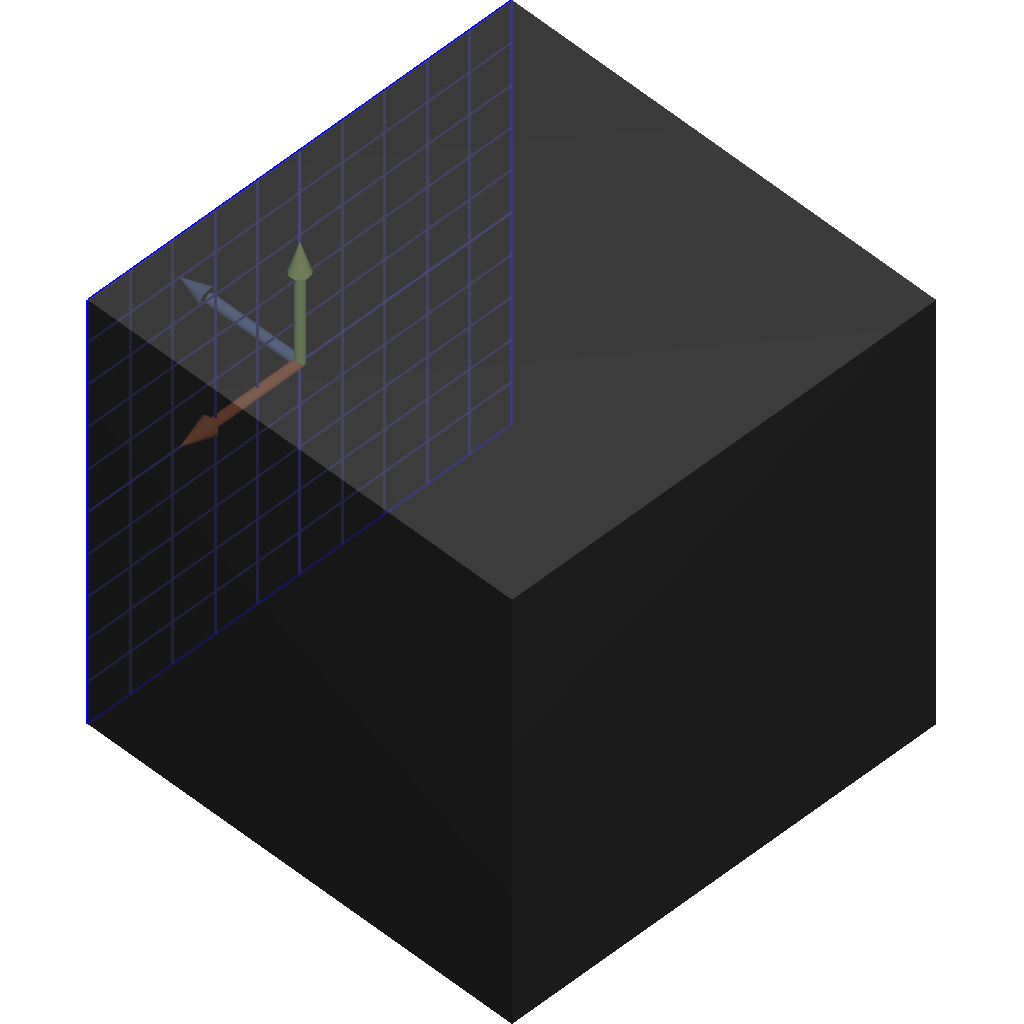

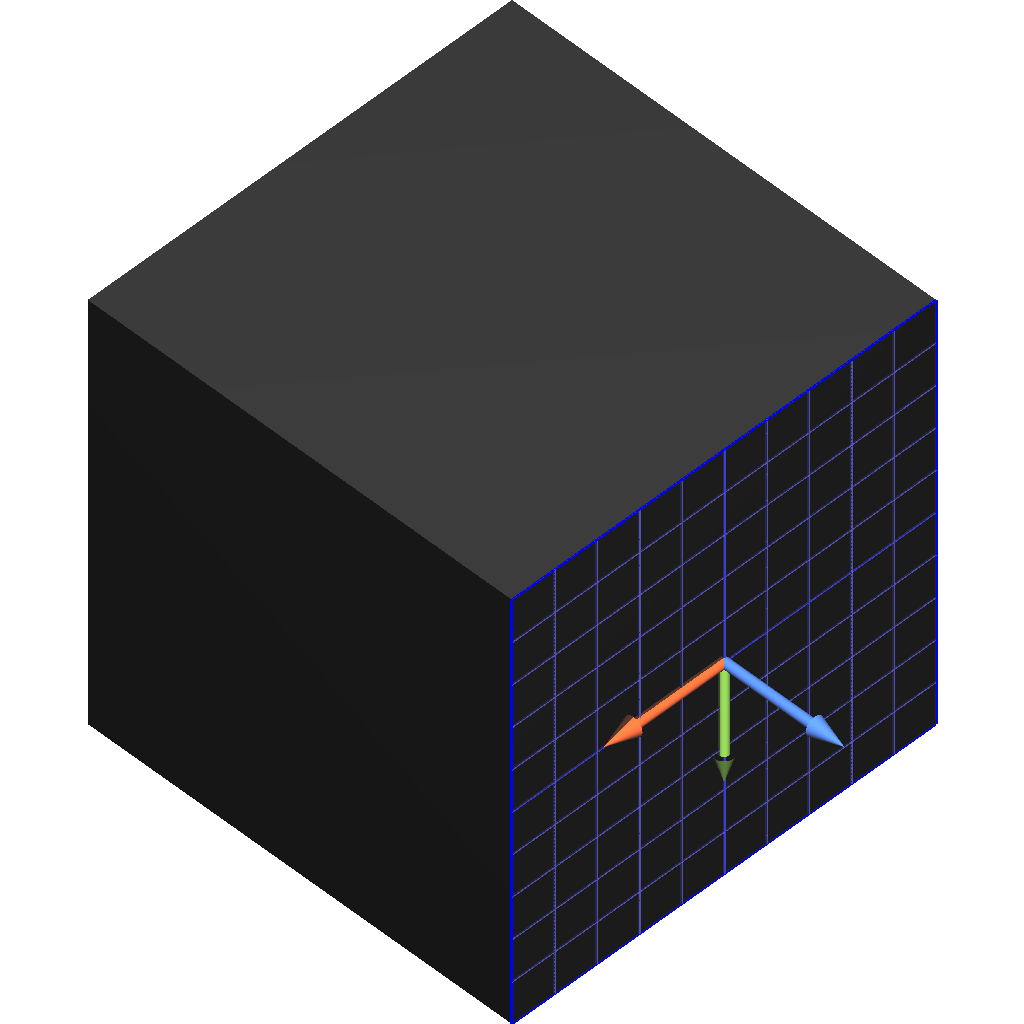

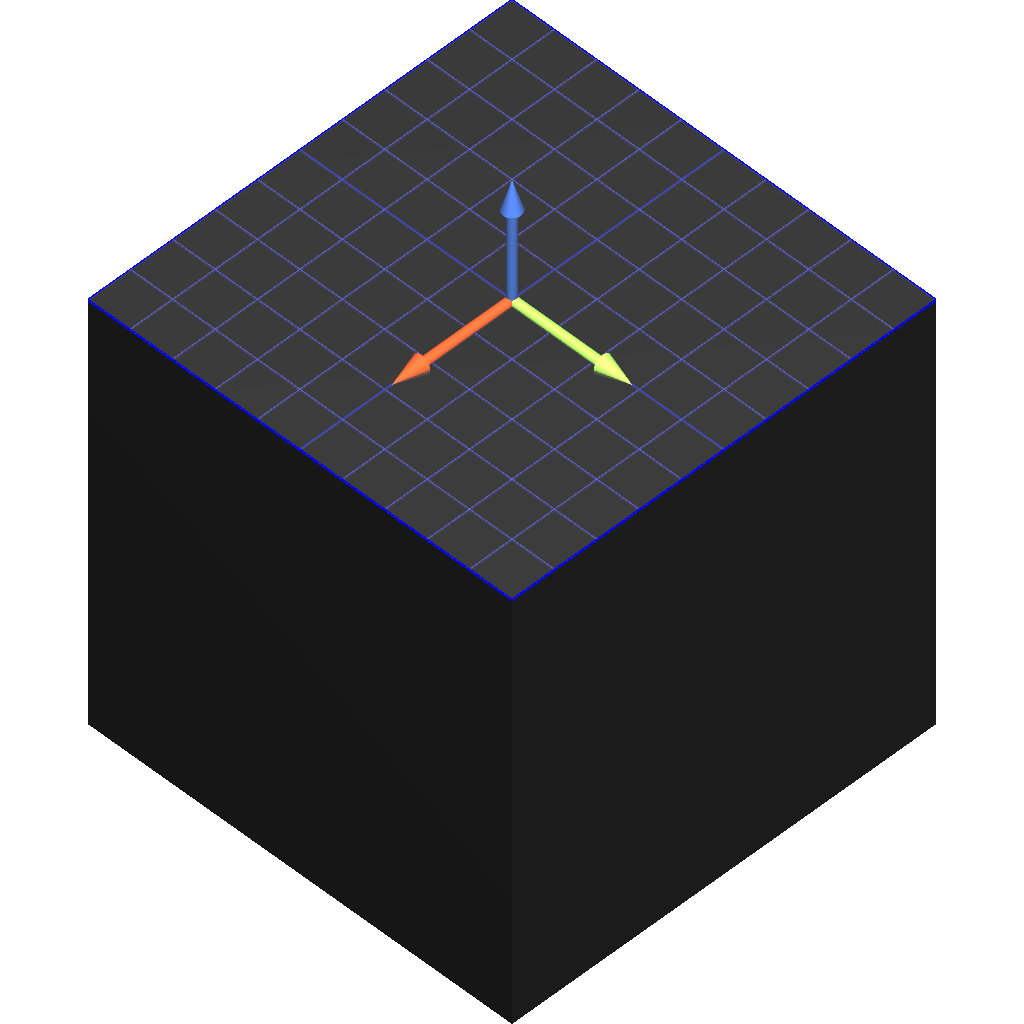

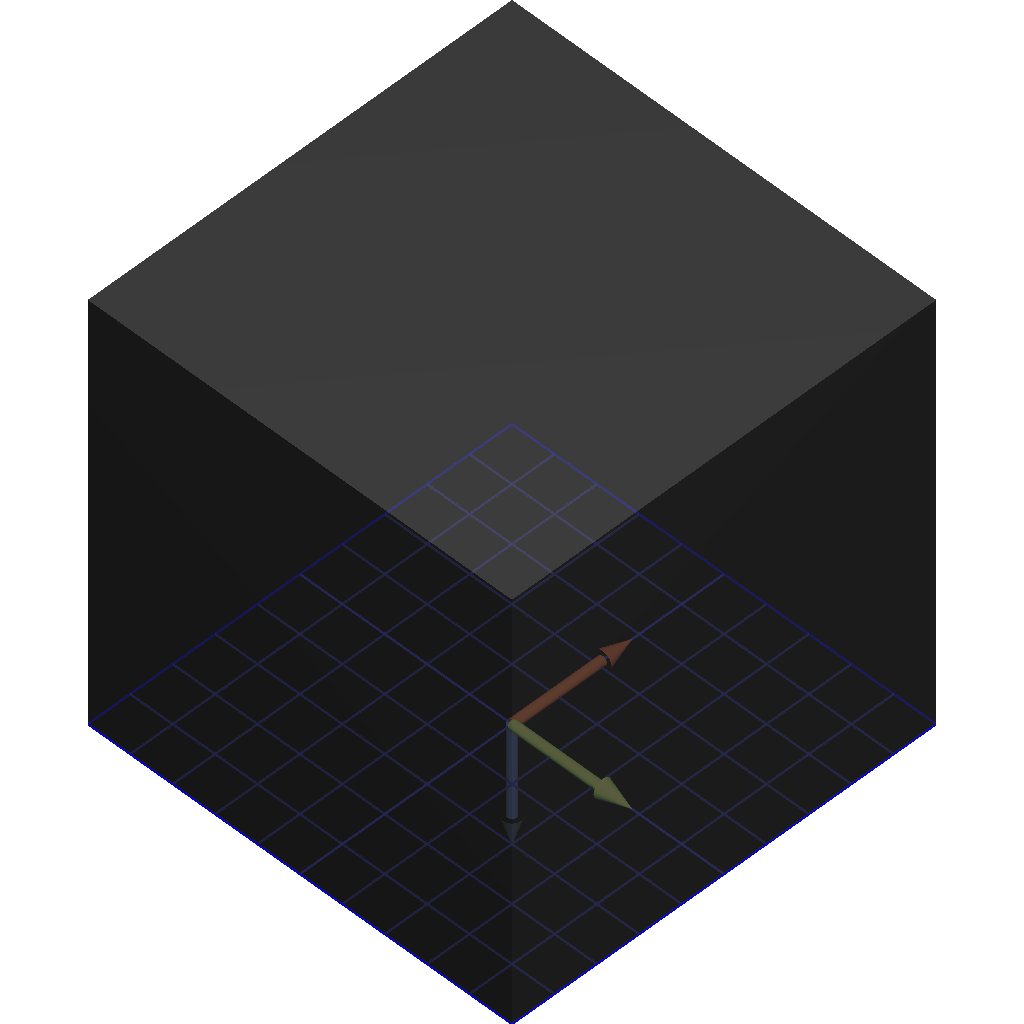

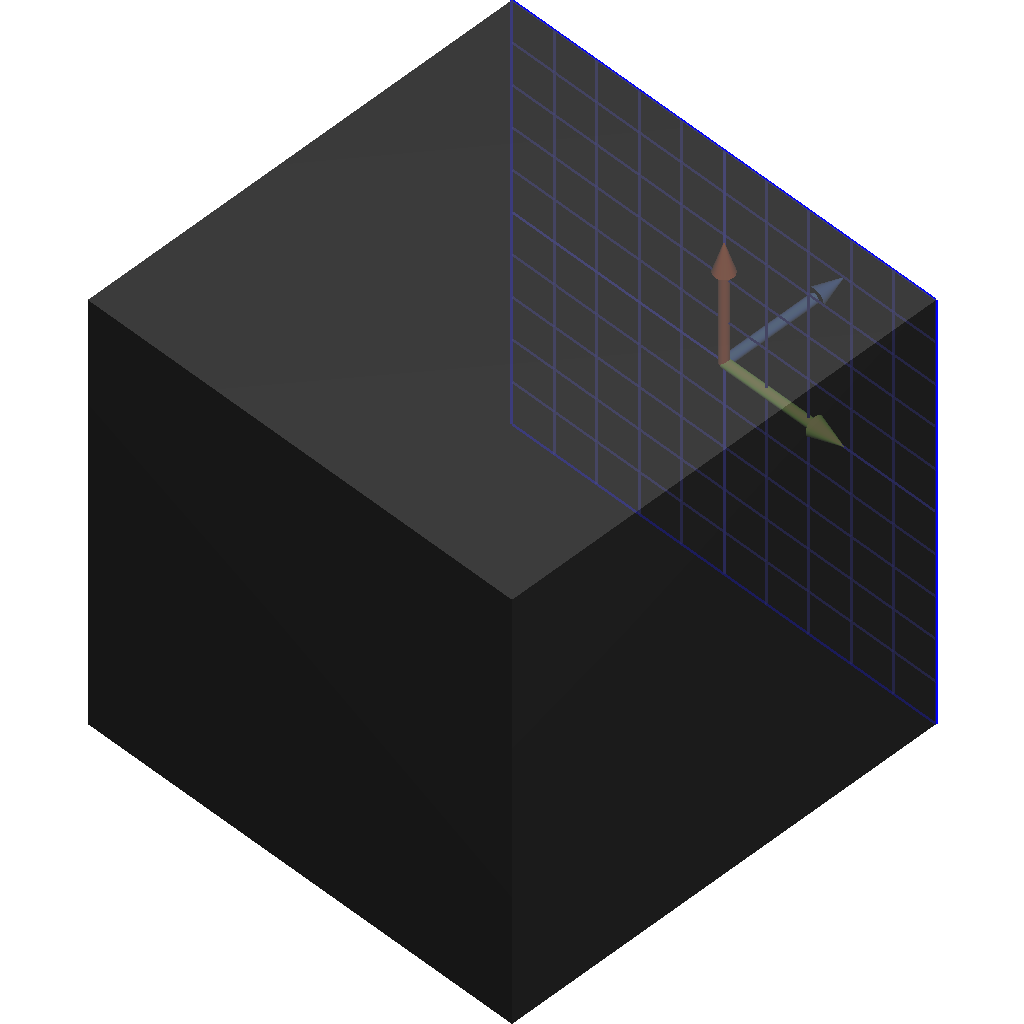

Reference frames
