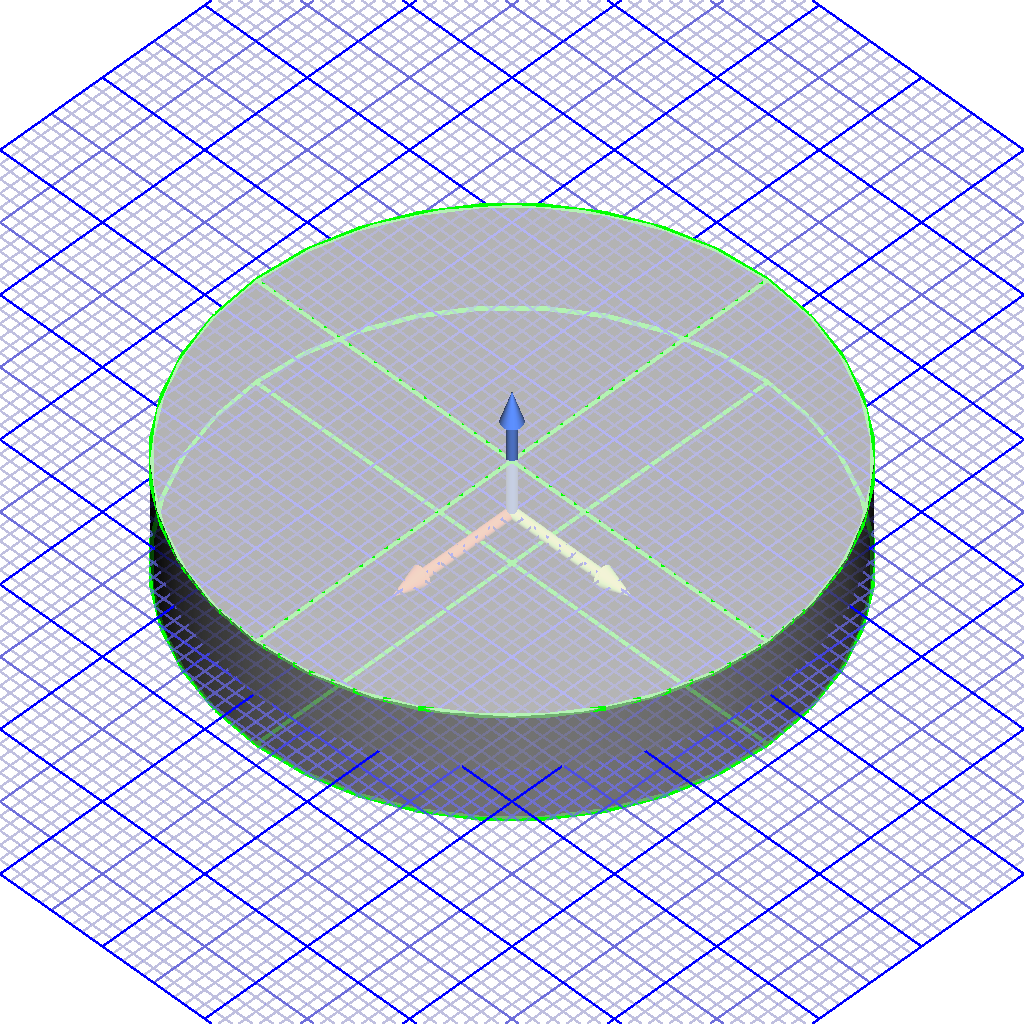

CircularWindow

Circular window with thickness and a refractive index.

Specialization of OpticalElement

Properties

Name	Description	Default	Units
CircularWindow
thickness	Thickness of the window	0.01	m
radius	Radius of the window	0.025	m
diameter	Diameter of the window	0.05	m
n	Refractive index of the window	1.5
Element
blue	Blue channel of the solid color of the element	0.25	0..1
green	Green channel of the solid color of the element	0.25	0..1
red	Red channel of the solid color of the element	0.25	0..1
shiny	Specular component intensity	63	0..127
specBlue	Blue channel of the specular color of the element	0.25	0..1
specGreen	Green channel of the specular color of the element	0.25	0..1
specRed	Red channel of the specular color of the element	0.25	0..1

Reference frames

Optical surfaces

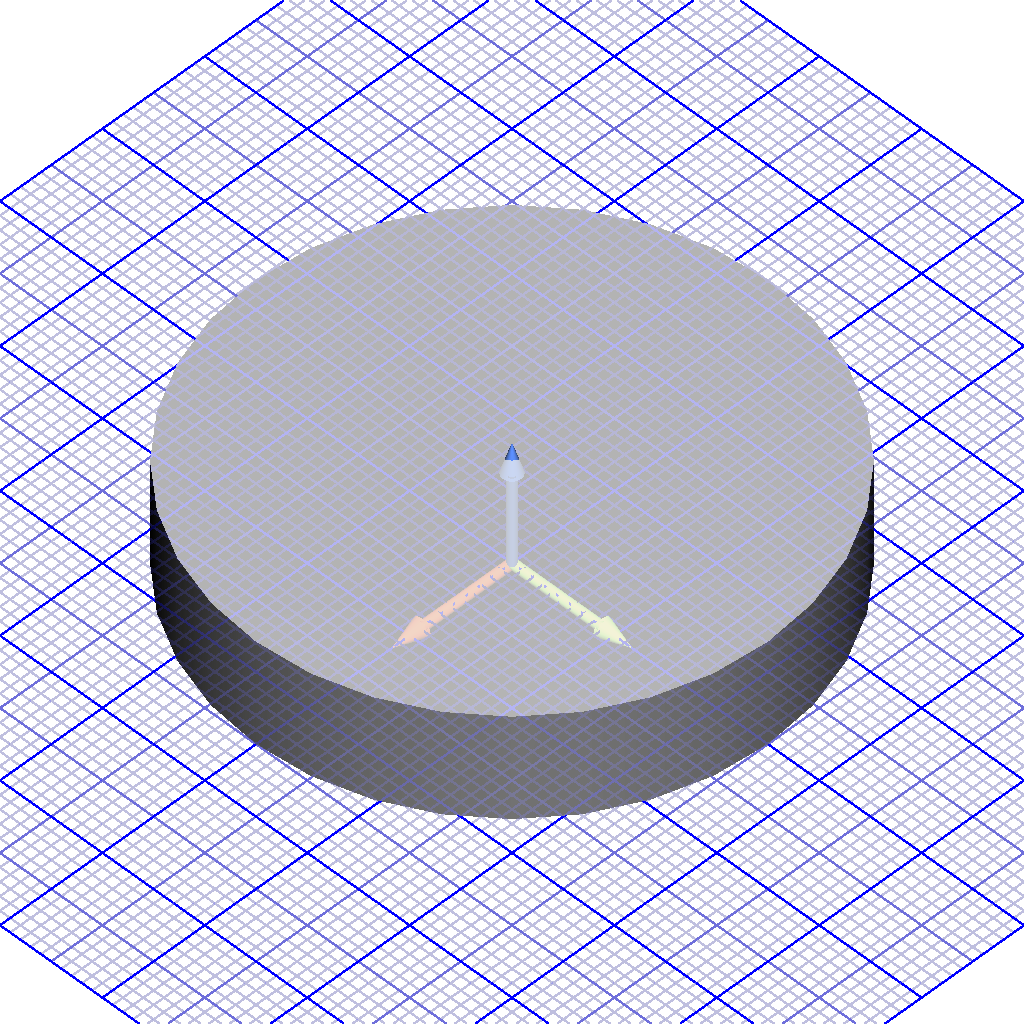

• inputFace: CircularWindowBoundary(CircularFlat, DielectricEMInterface)

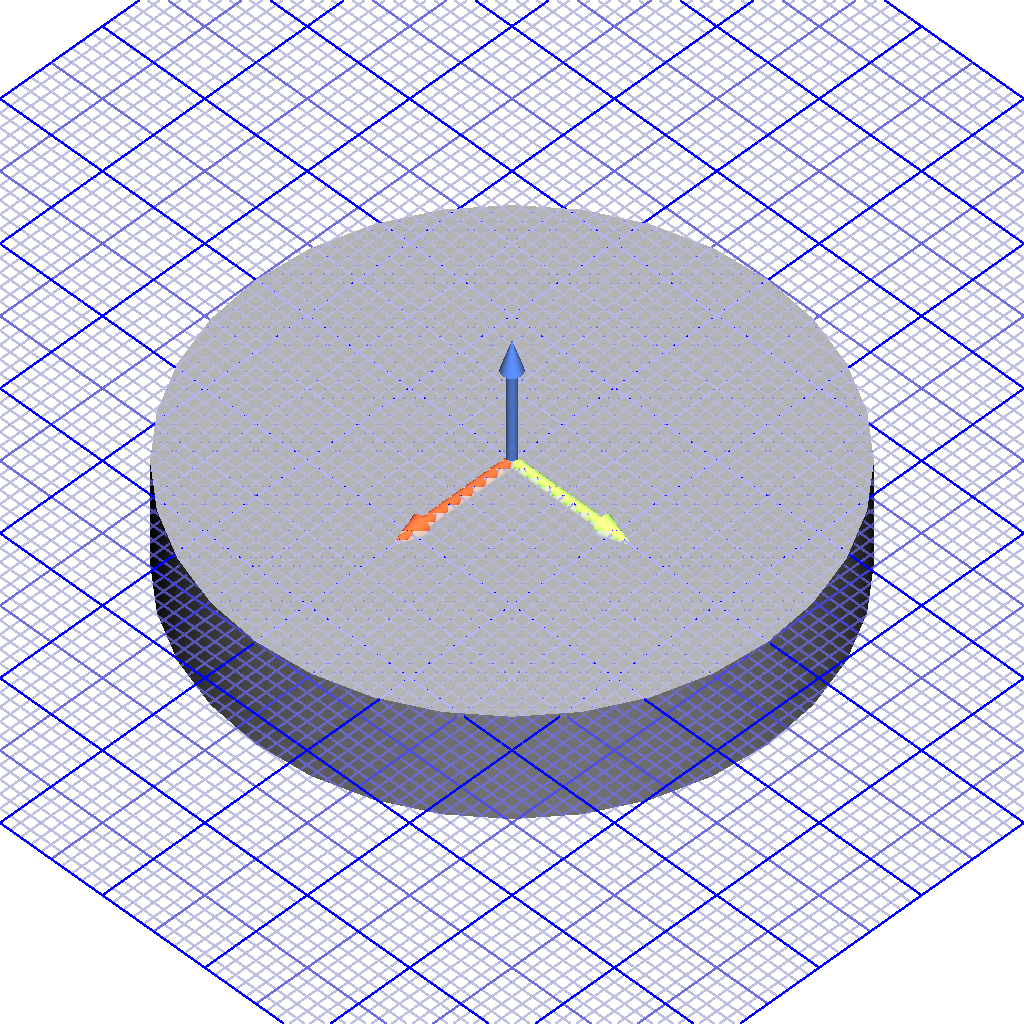

• outputFace: CircularWindowBoundary(CircularFlat, DielectricEMInterface)
