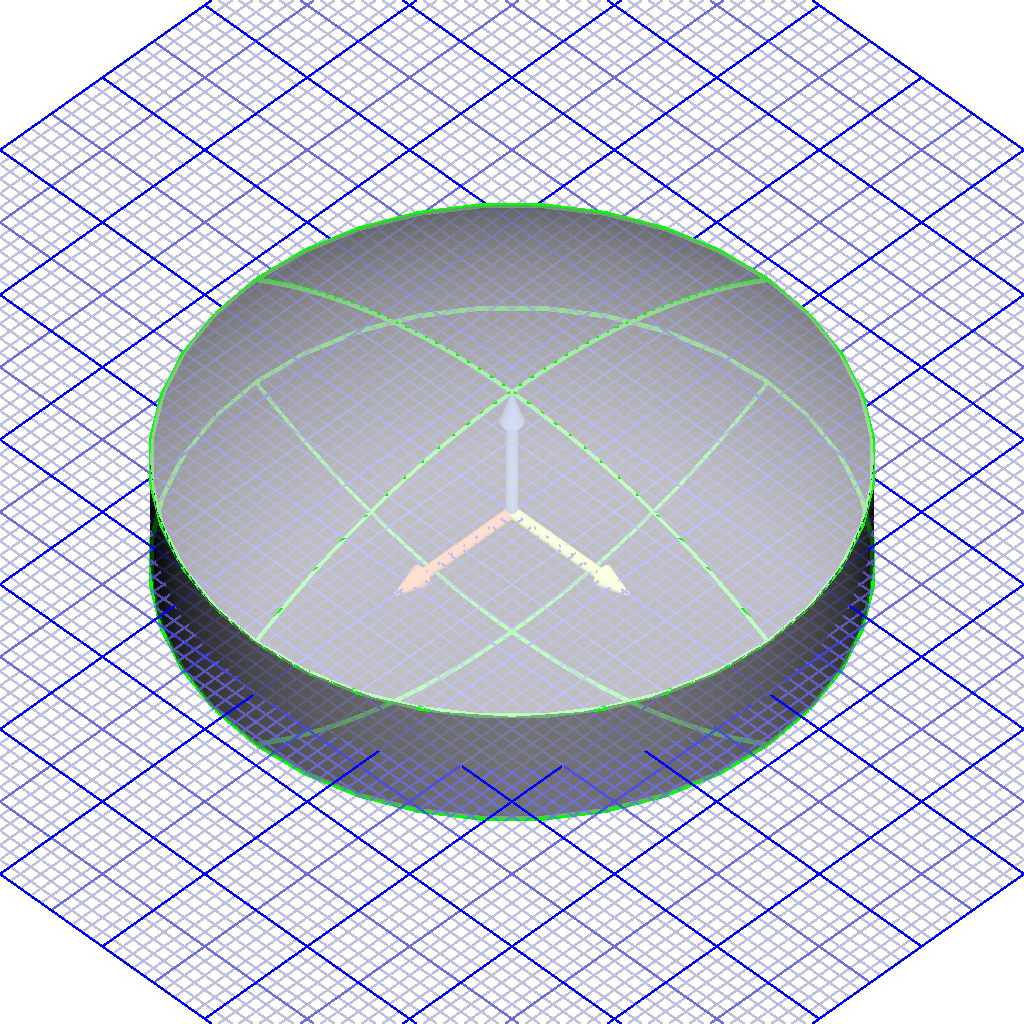

ConicLens

Lens with surfaces given by conic curves.

Specialization of OpticalElement

Properties

Name	Description	Default	Units
ConicLens
thickness	Thickness of the lens	0.01	m
radius	Radius of the lens	0.025	m
diameter	Diameter of the lens	0.05	m
x0	X-axis offset	0	m
y0	Y-axis offset	0	m
n	Refractive index	1.5
curvature	Radius of curvature of both surfaces	0.05	m
focalLength	Focal length of both surfaces	0.05	m
conic	Conic constant (K) of both surfaces	0
frontCurvature	Radius of curvature of the front surface	0.1	m
frontFocalLength	Focal length of the front surface	0.05	m
frontConic	Conic constant (K) of the front surface	0
backCurvature	Radius of curvature of the front surface	0.1	m
backFocalLength	Focal length of the back surface	0.05	m
backConic	Conic constant (K) of the back surface	0
Element
blue	Blue channel of the solid color of the element	0.25	0..1
green	Green channel of the solid color of the element	0.25	0..1
red	Red channel of the solid color of the element	0.25	0..1
shiny	Specular component intensity	63	0..127
specBlue	Blue channel of the specular color of the element	0.25	0..1
specGreen	Green channel of the specular color of the element	0.25	0..1
specRed	Red channel of the specular color of the element	0.25	0..1

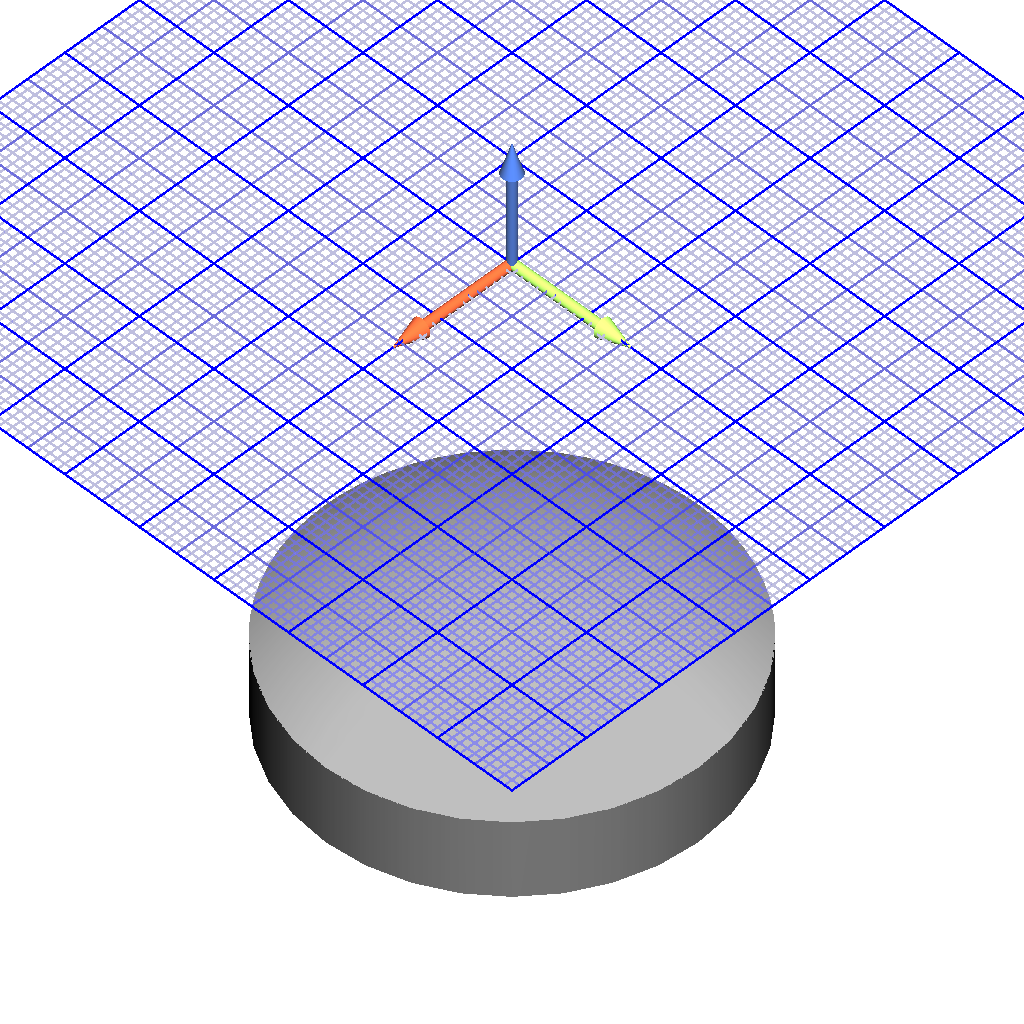

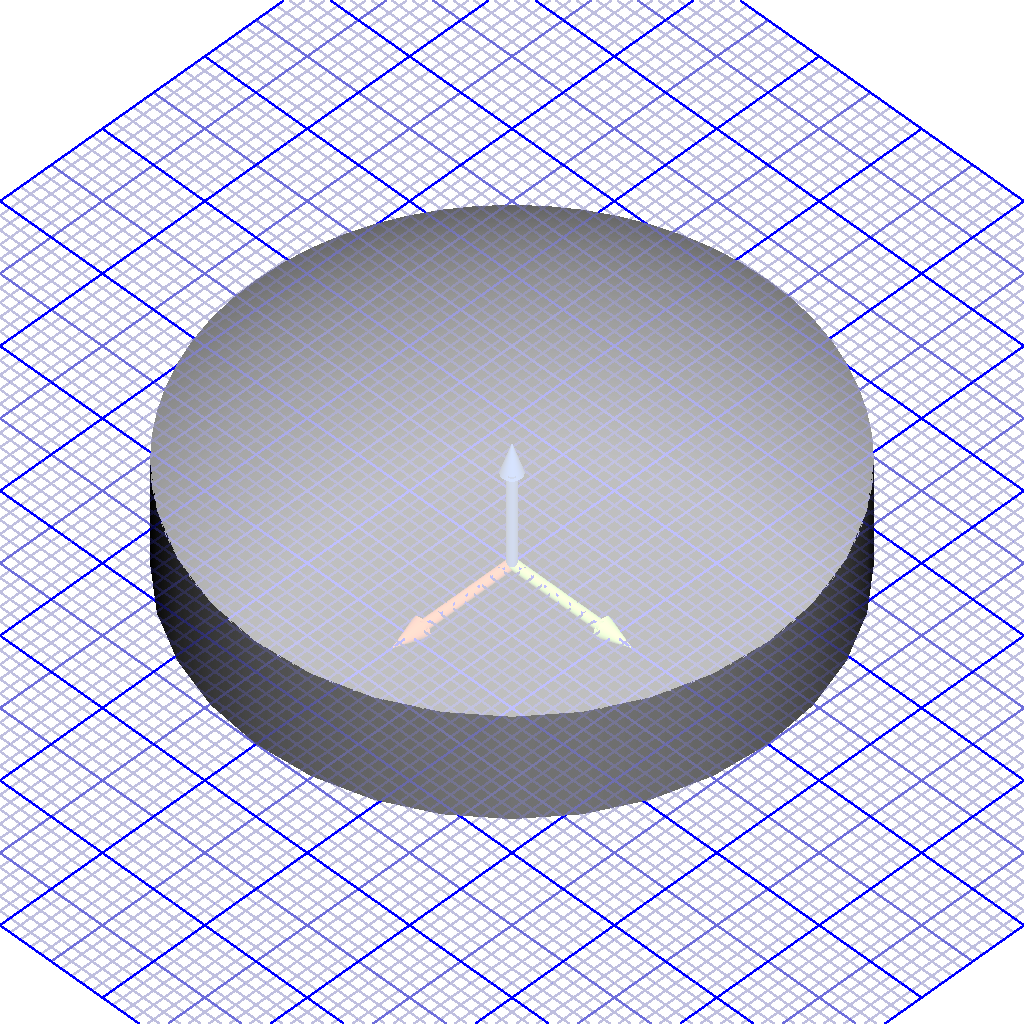

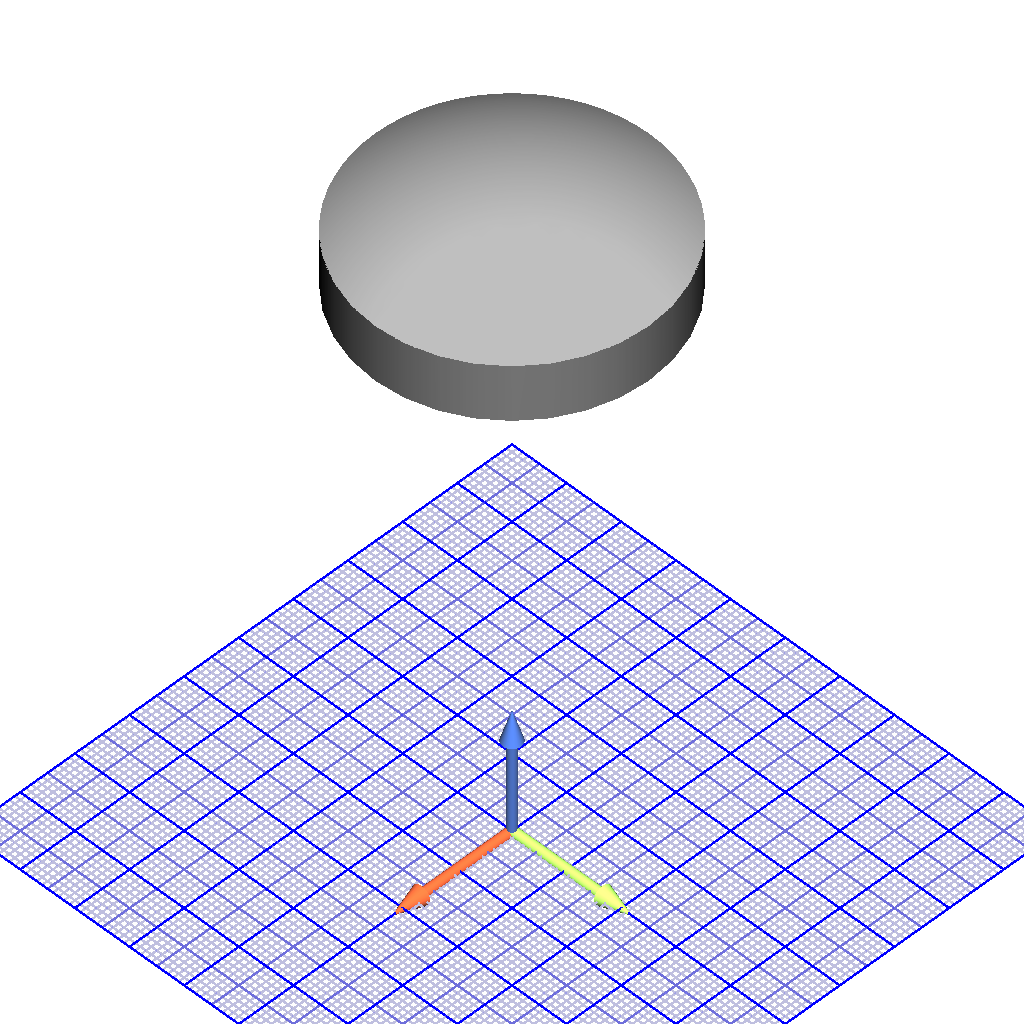

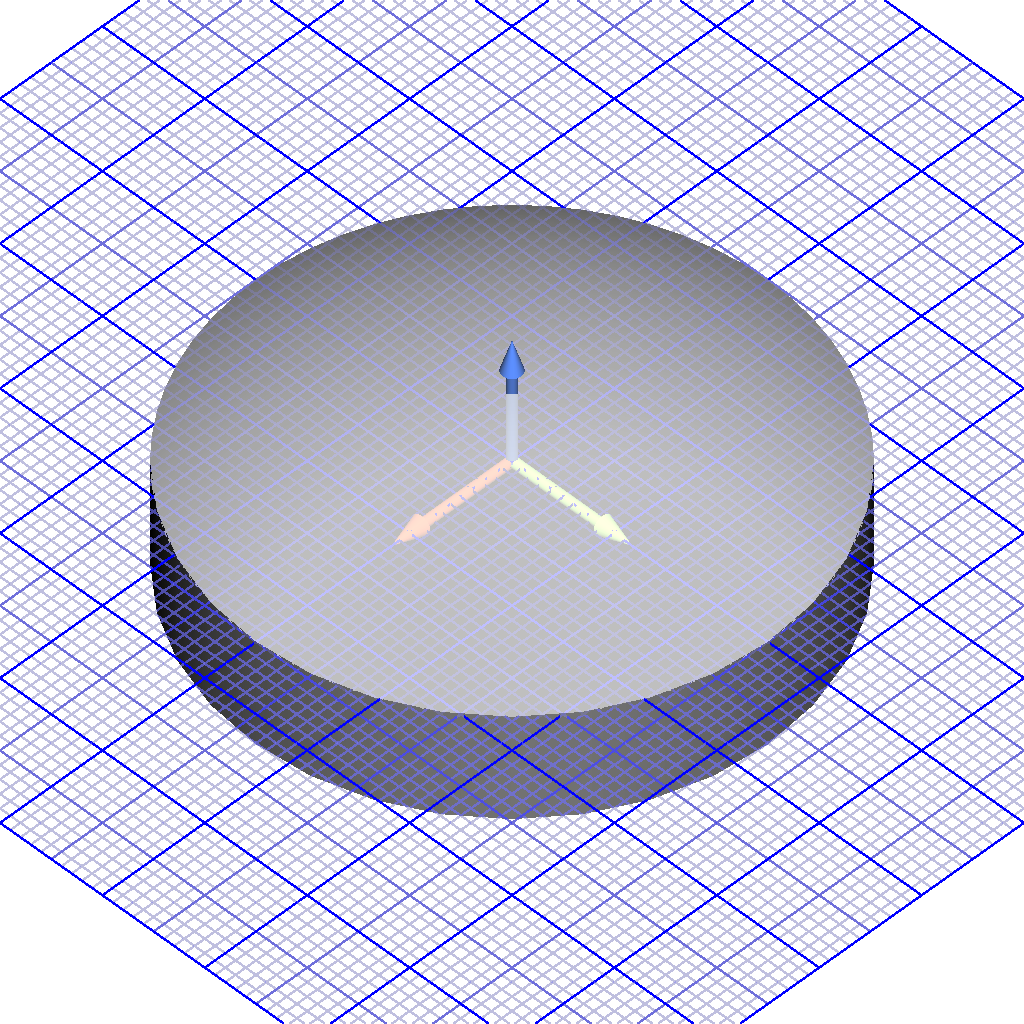

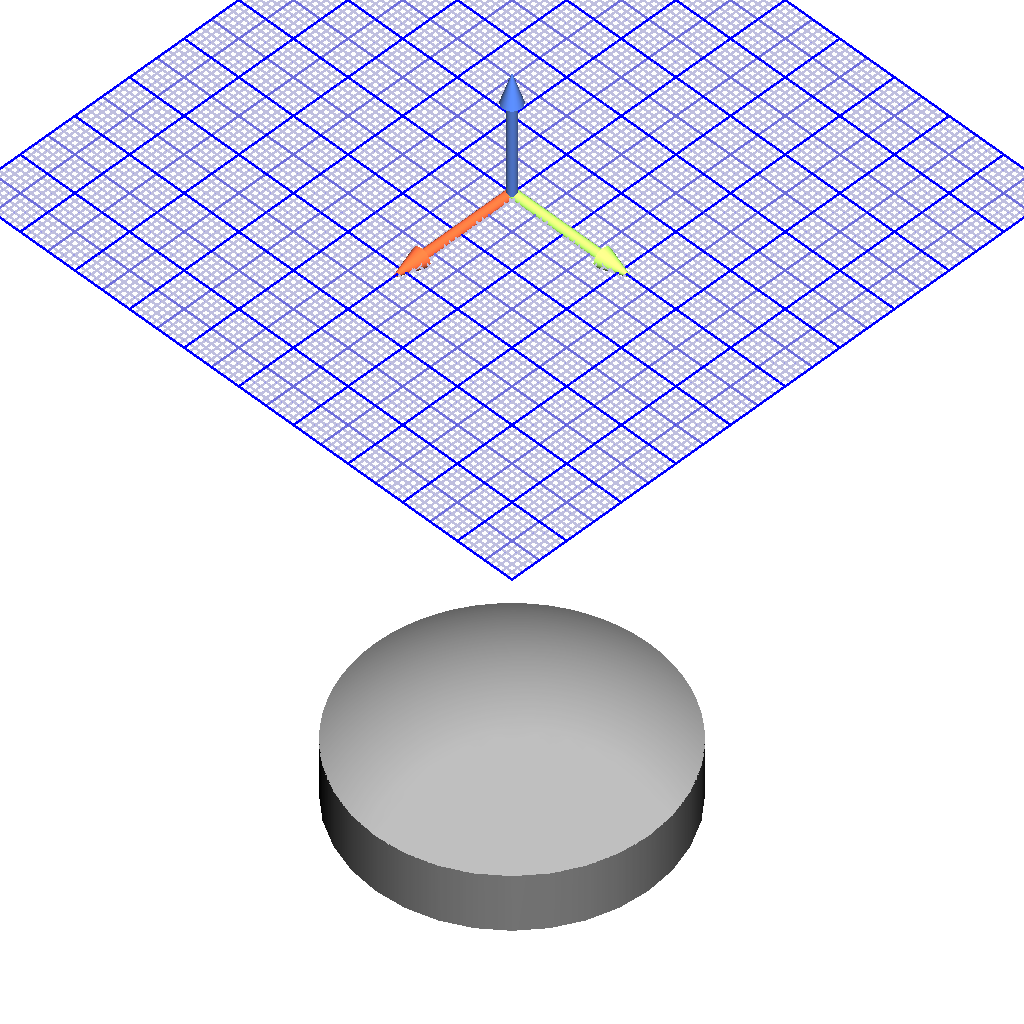

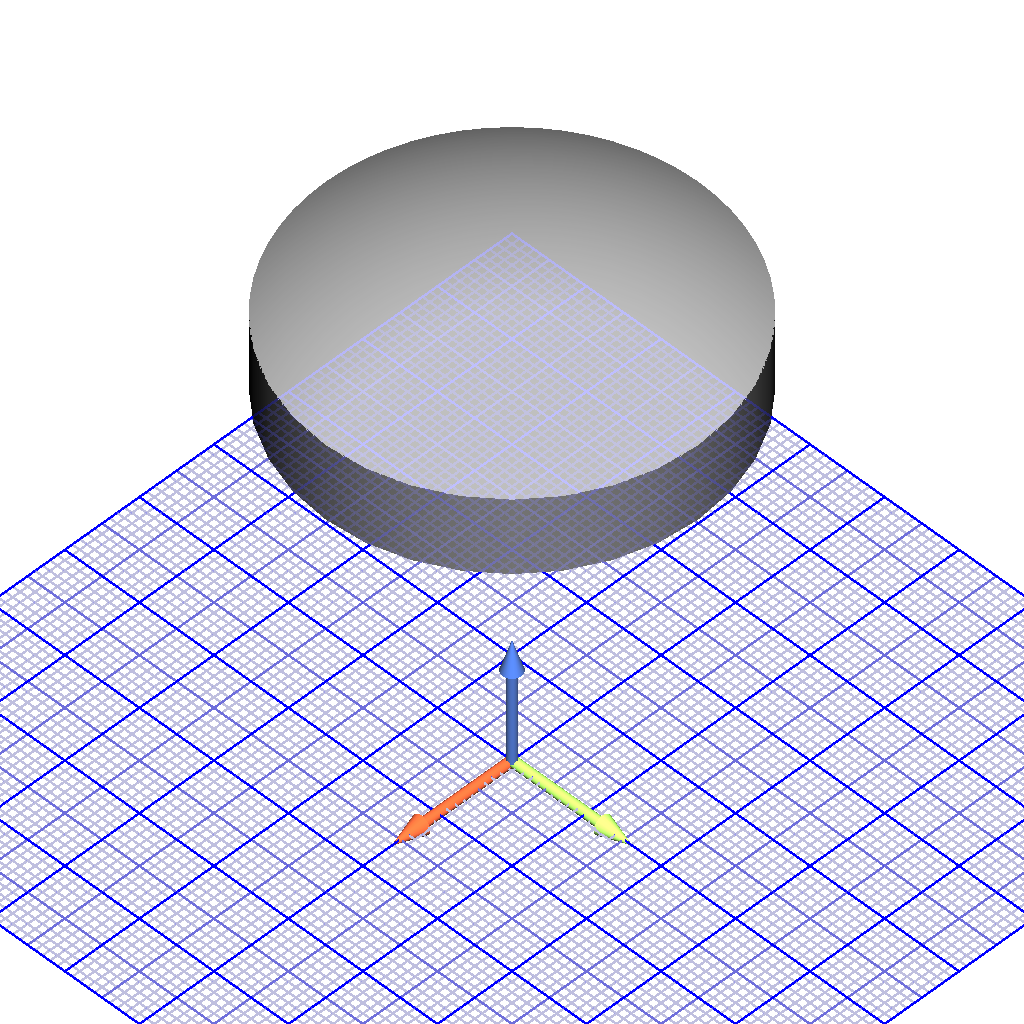

Reference frames

Optical surfaces

• inputSurface: ConicLensBoundary(Conic(0.000000), DielectricEMInterface)

• outputSurface: ConicLensBoundary(Conic(0.000000), DielectricEMInterface)
