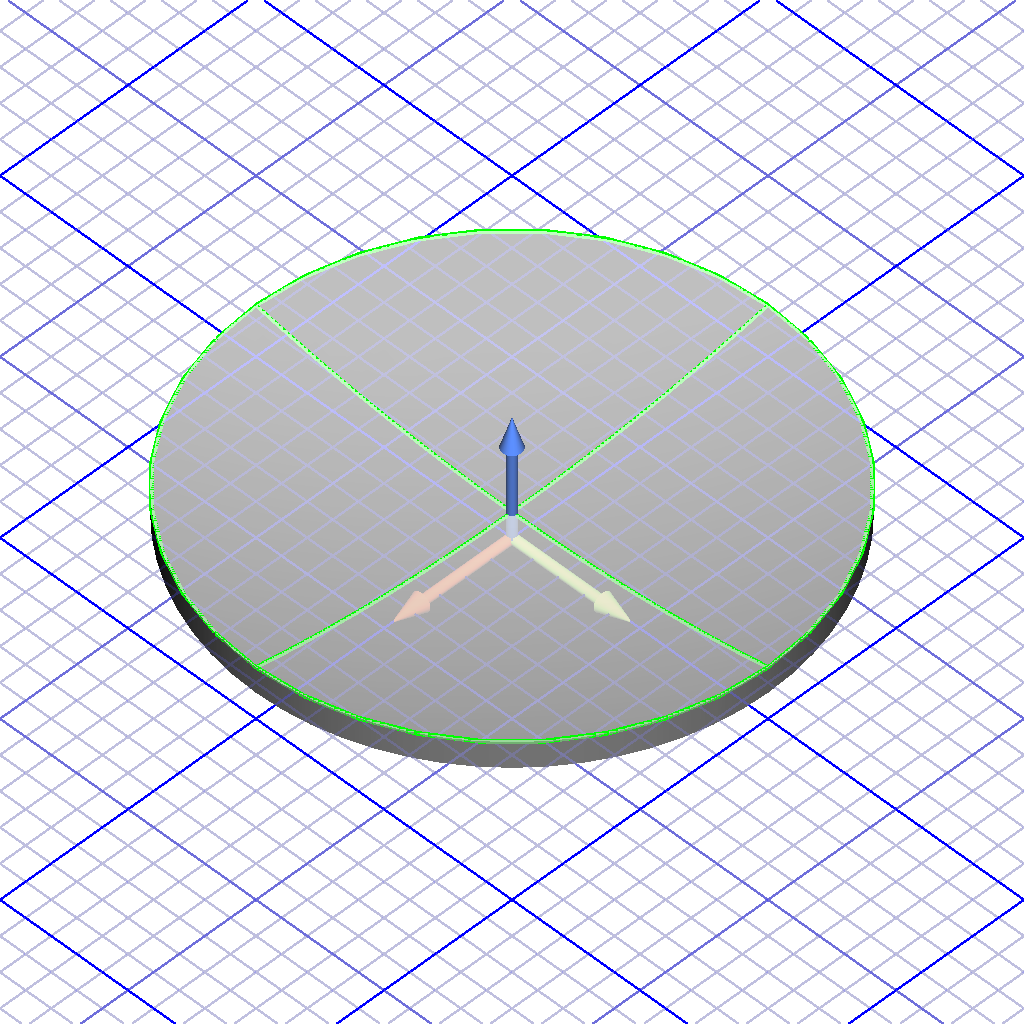

ConicMirror

Circular mirror with a surface given by a conic curve.

Specialization of OpticalElement

Properties

Name	Description	Default	Units
ConicMirror
thickness	Thickness of the mirror	0.01	m
radius	Radius of the mirror	0.1	m
diameter	Diameter of the mirror	0.2	m
curvature	Radius of curvature of the mirror	0.5	m
focalLength	Focal length of the mirror	0.25	m
conic	Conic constant (K) of the reflective surface	0
hole	Radius of the central hole	0.0	m
x0	X-axis offset	0	m
y0	Y-axis offset	0	m
vertexRelative	Positioning is relative to the vertex of the reflective surface	False
Element
blue	Blue channel of the solid color of the element	0.25	0..1
green	Green channel of the solid color of the element	0.25	0..1
red	Red channel of the solid color of the element	0.25	0..1
shiny	Specular component intensity	63	0..127
specBlue	Blue channel of the specular color of the element	0.25	0..1
specGreen	Green channel of the specular color of the element	0.25	0..1
specRed	Red channel of the specular color of the element	0.25	0..1

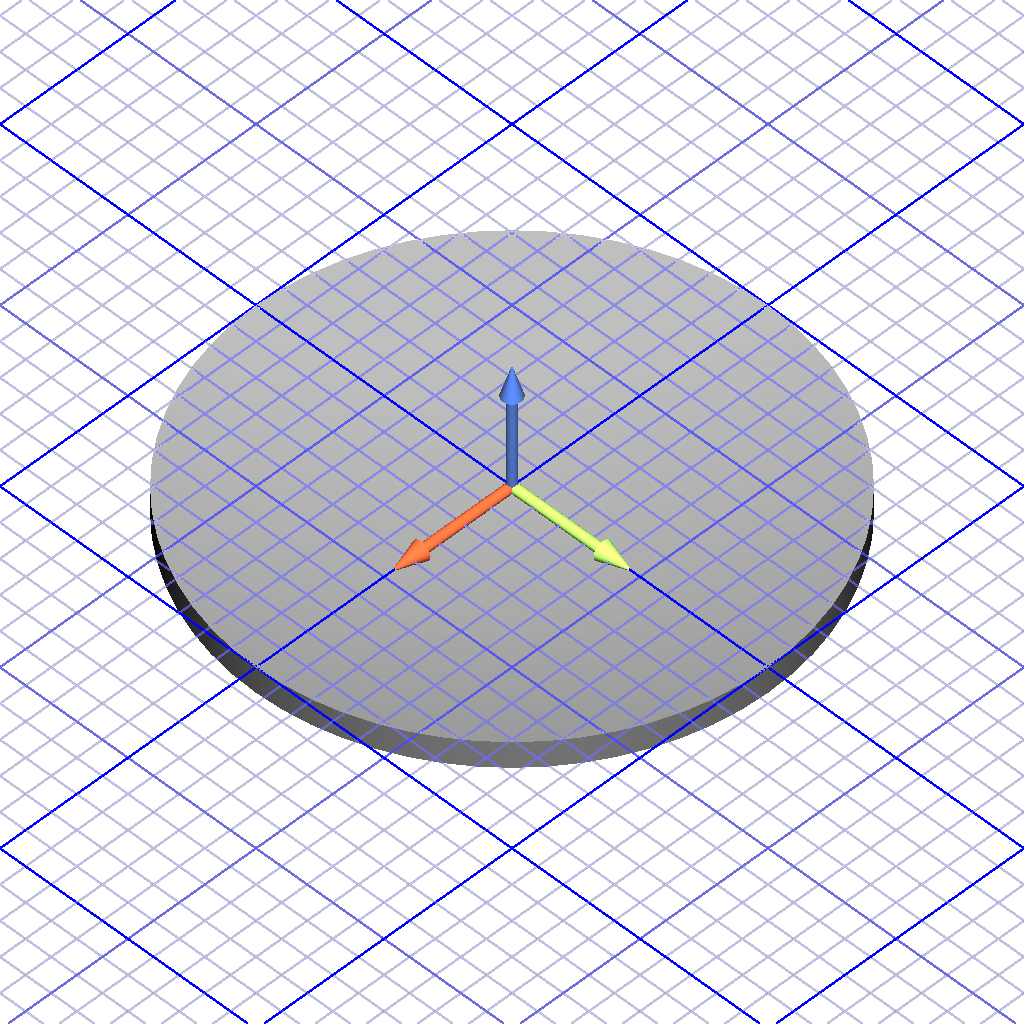

Reference frames

Optical surfaces

• refSurf: ConicMirrorBoundary(Conic(0.000000), ReflectiveEMInterface)
