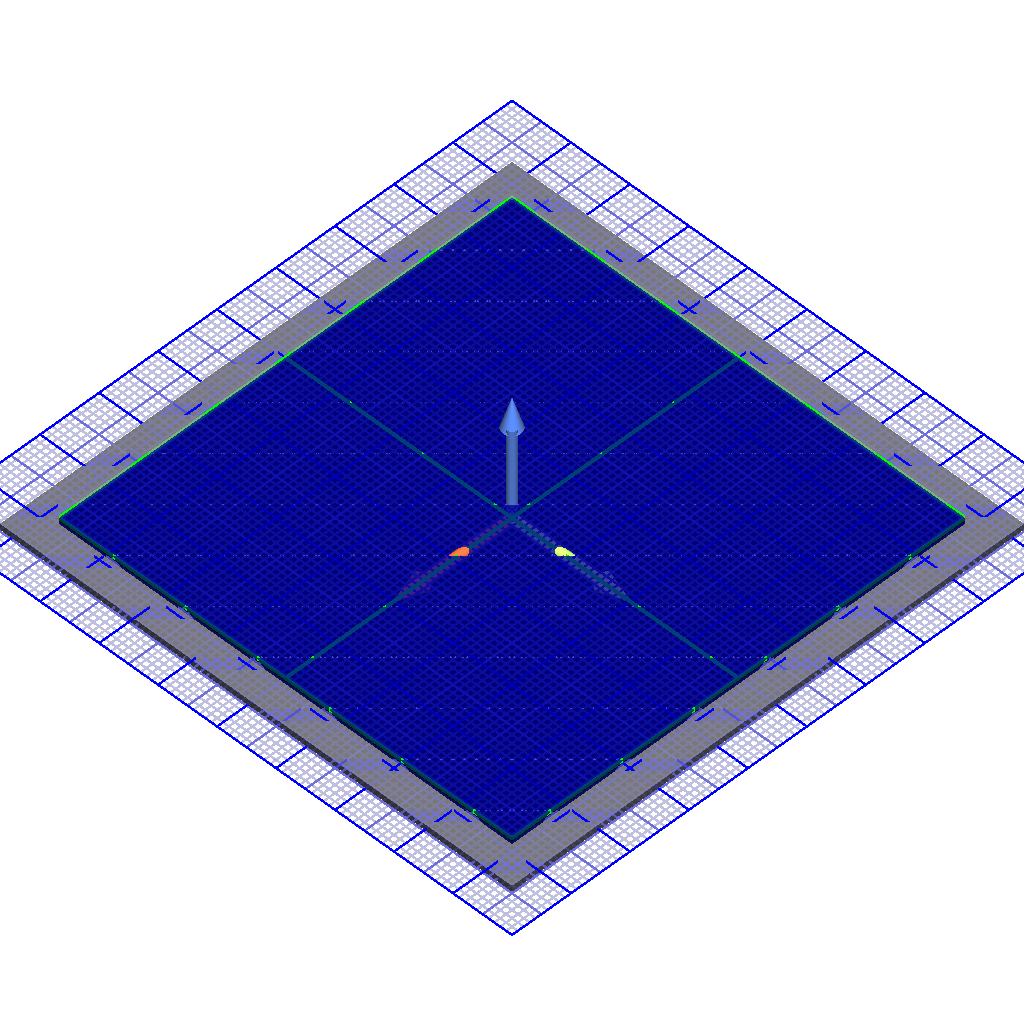

Detector

Generic detector with rectangular pixels.

Specialization of OpticalElement

Properties

Name	Description	Default	Units
Detector
pixelWidth	Horizontal size of the pixel	1.5e-05	m
pixelHeight	Vertical size of the pixel	1.5e-05	m
cols	Number of pixels in the horizontal direction	512
rows	Number of pixels in the vertical direction	512
flip	Flip detector 180º around the X axis	False
Element
blue	Blue channel of the solid color of the element	0.25	0..1
green	Green channel of the solid color of the element	0.25	0..1
red	Red channel of the solid color of the element	0.25	0..1
shiny	Specular component intensity	63	0..127
specBlue	Blue channel of the specular color of the element	0.25	0..1
specGreen	Green channel of the specular color of the element	0.25	0..1
specRed	Red channel of the specular color of the element	0.25	0..1

Optical surfaces

• detSurf: DetectorBoundary(RectangularFlat, [no interface])
