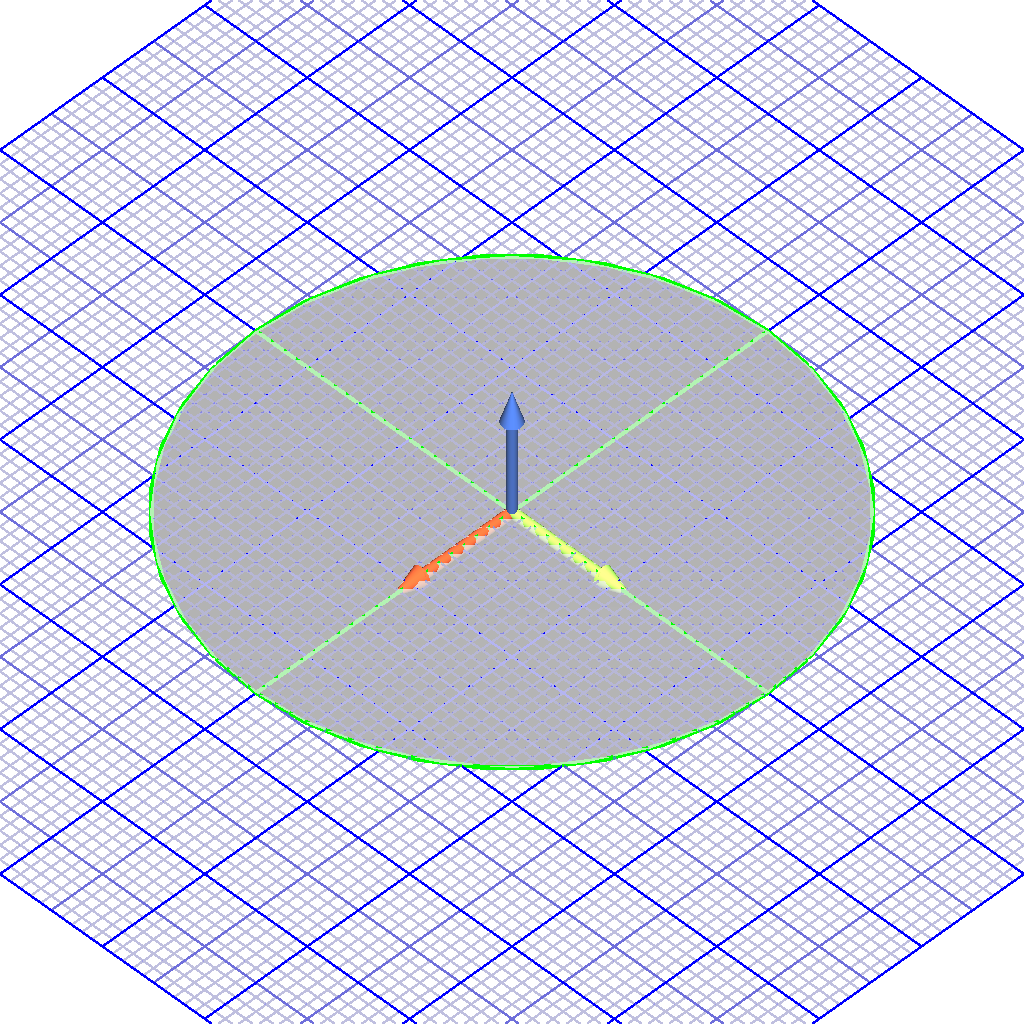

IdealLens

Ideal (paraxial) lens with null thickness.

Specialization of OpticalElement

Properties

Name	Description	Default	Units
IdealLens
radius	Radius of the lens	0.025	m
diameter	Diameter of the lens	0.05	m
focalLength	Focal length	1.0	m
Element
blue	Blue channel of the solid color of the element	0.25	0..1
green	Green channel of the solid color of the element	0.25	0..1
red	Red channel of the solid color of the element	0.25	0..1
shiny	Specular component intensity	63	0..127
specBlue	Blue channel of the specular color of the element	0.25	0..1
specGreen	Green channel of the specular color of the element	0.25	0..1
specRed	Red channel of the specular color of the element	0.25	0..1

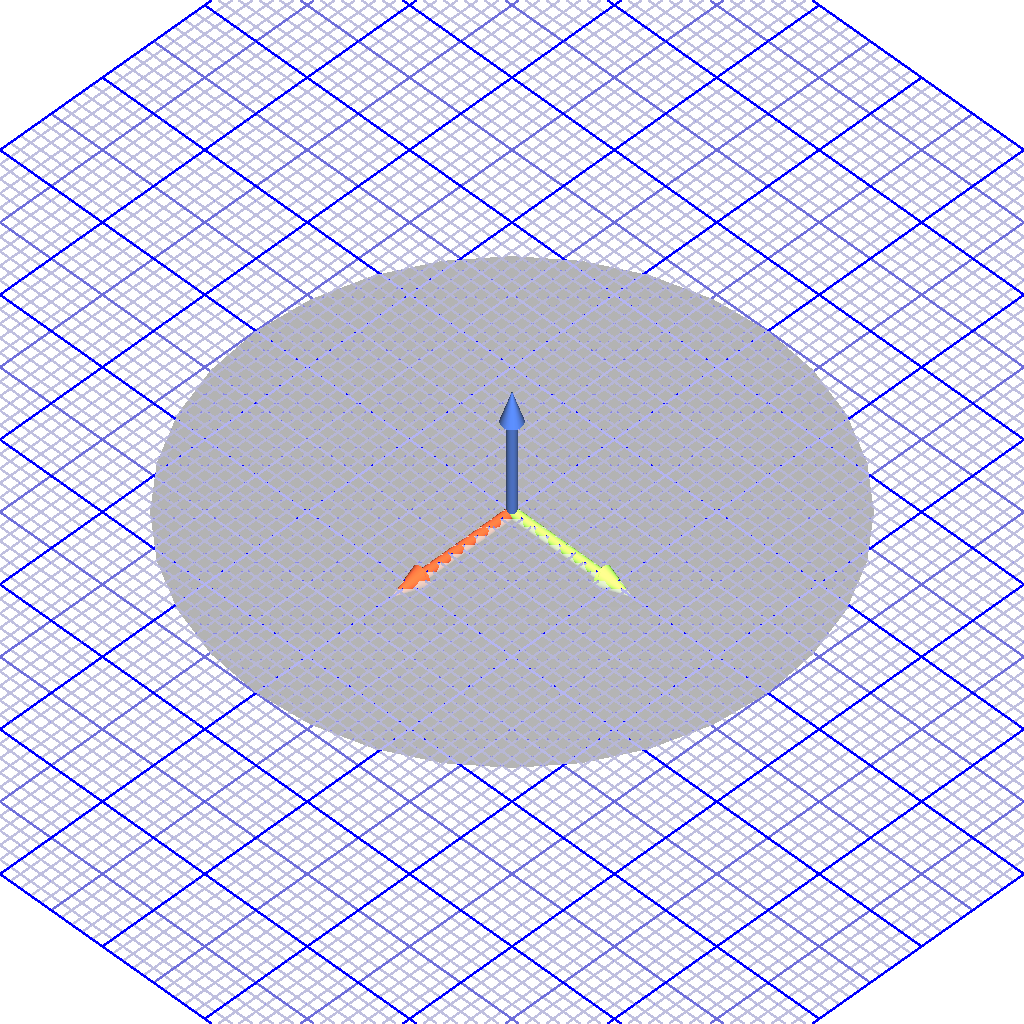

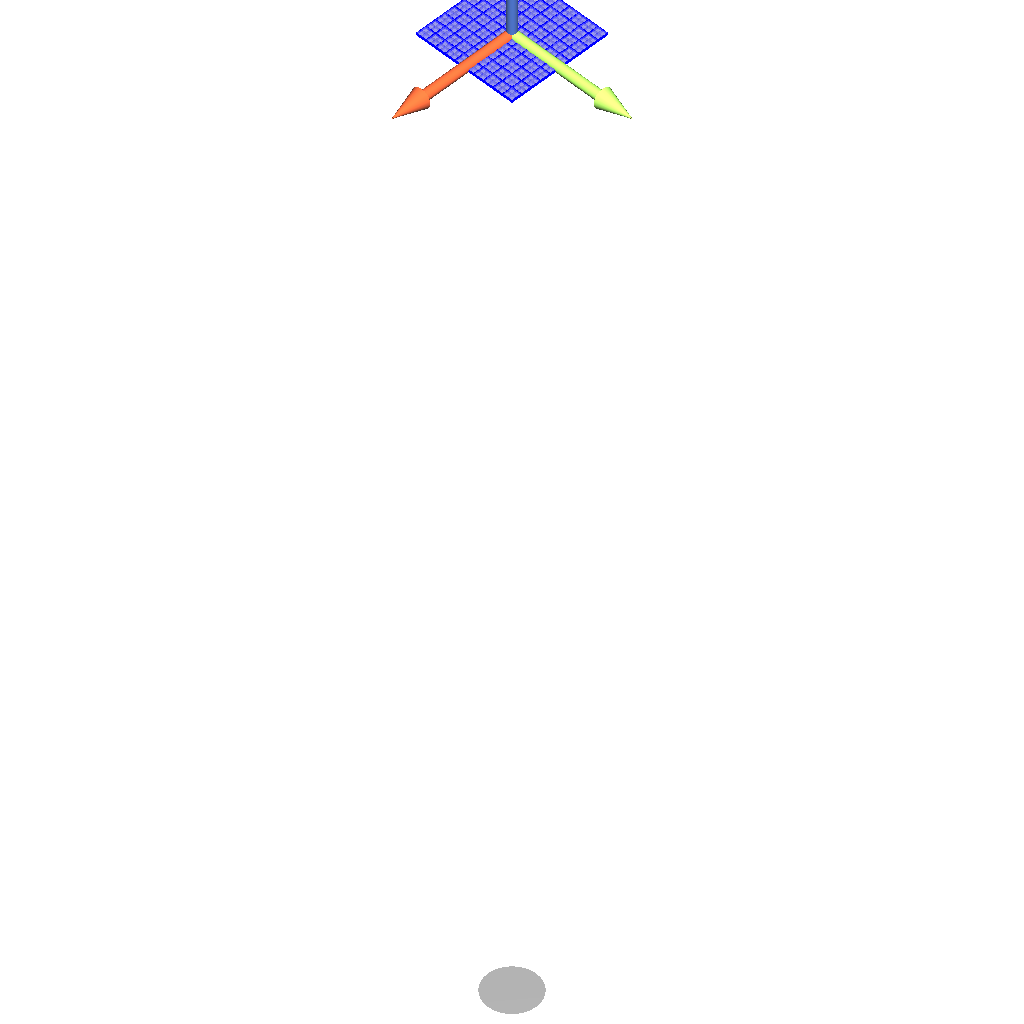

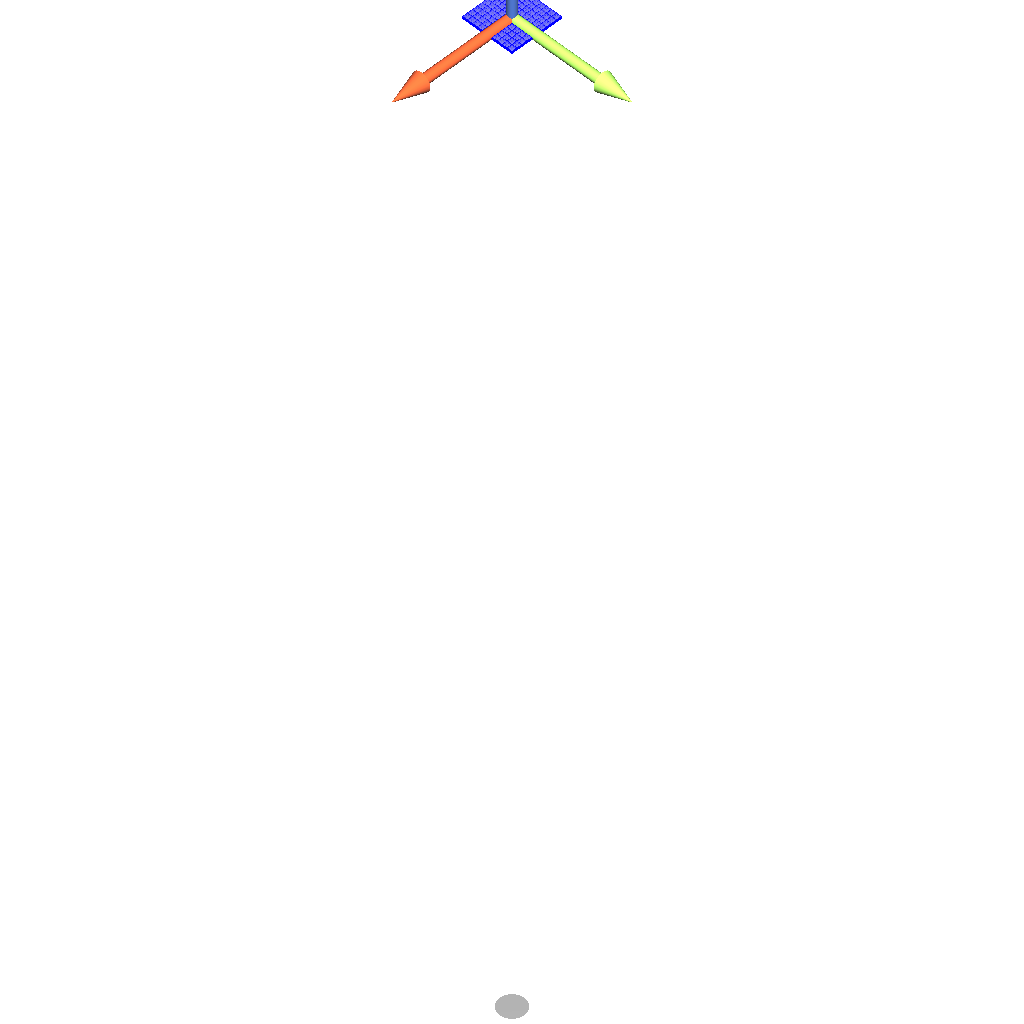

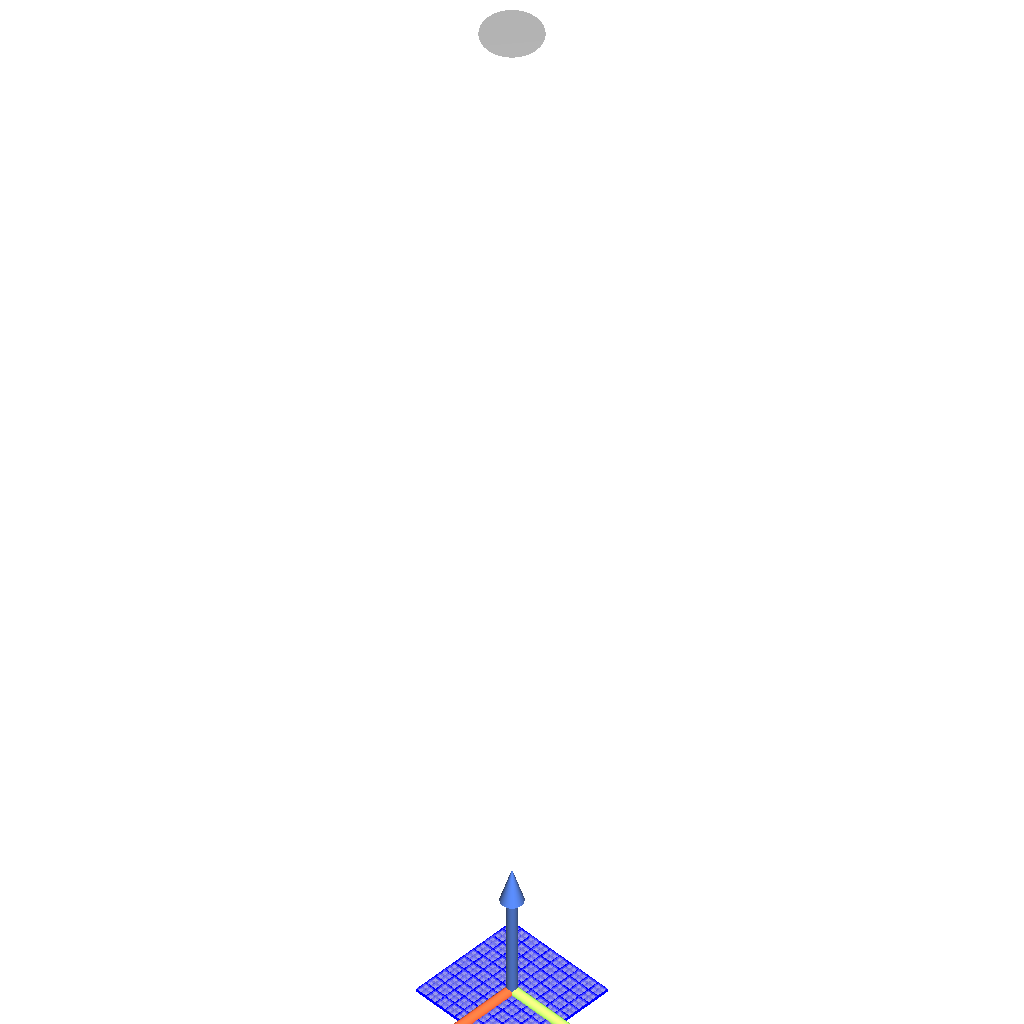

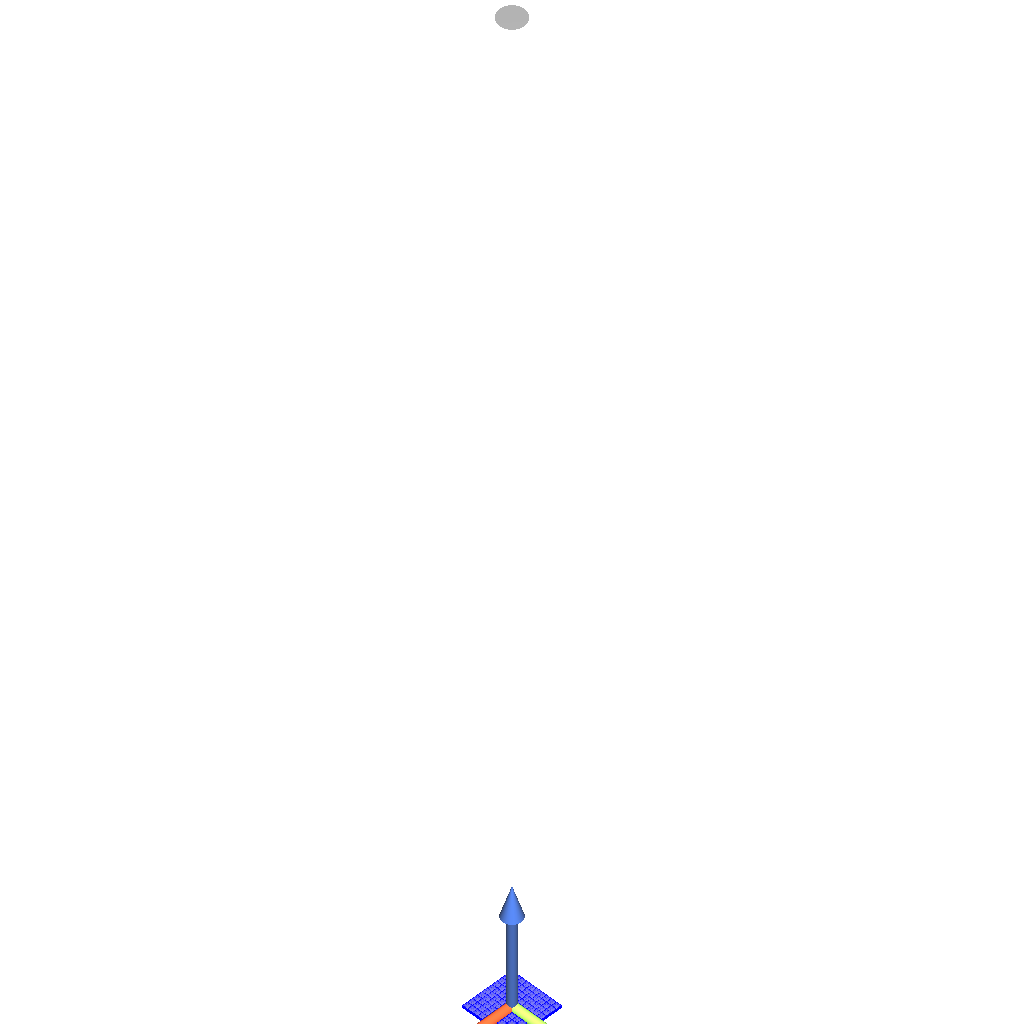

Reference frames

Optical surfaces

• lensSurface: IdealLensBoundary(CircularFlat, ParaxialEMInterface)
