LensletArray

Rectangular grid of microlenses.

Specialization of OpticalElement

Properties

Name	Description	Default	Units
LensletArray
conic	Conic constant (K) of the lens surface	0.0
thickness	Thickness of the microlenses	0.01	m
width	Horizontal dimension of the array	0.1	m
height	Vertical dimension of the array	0.1	m
cols	Number of microlenses in the horizontal direction	10
rows	Number of microlenses in the vertical direction	10
curvature	Radius of curvature of the microlenses	0.5	m
focalLength	Focal length of the microlenses	0.5	m
n	Refractive index of the microlenses	1.5
Element
blue	Blue channel of the solid color of the element	0.25	0..1
green	Green channel of the solid color of the element	0.25	0..1
red	Red channel of the solid color of the element	0.25	0..1
shiny	Specular component intensity	63	0..127
specBlue	Blue channel of the specular color of the element	0.25	0..1
specGreen	Green channel of the specular color of the element	0.25	0..1
specRed	Red channel of the specular color of the element	0.25	0..1

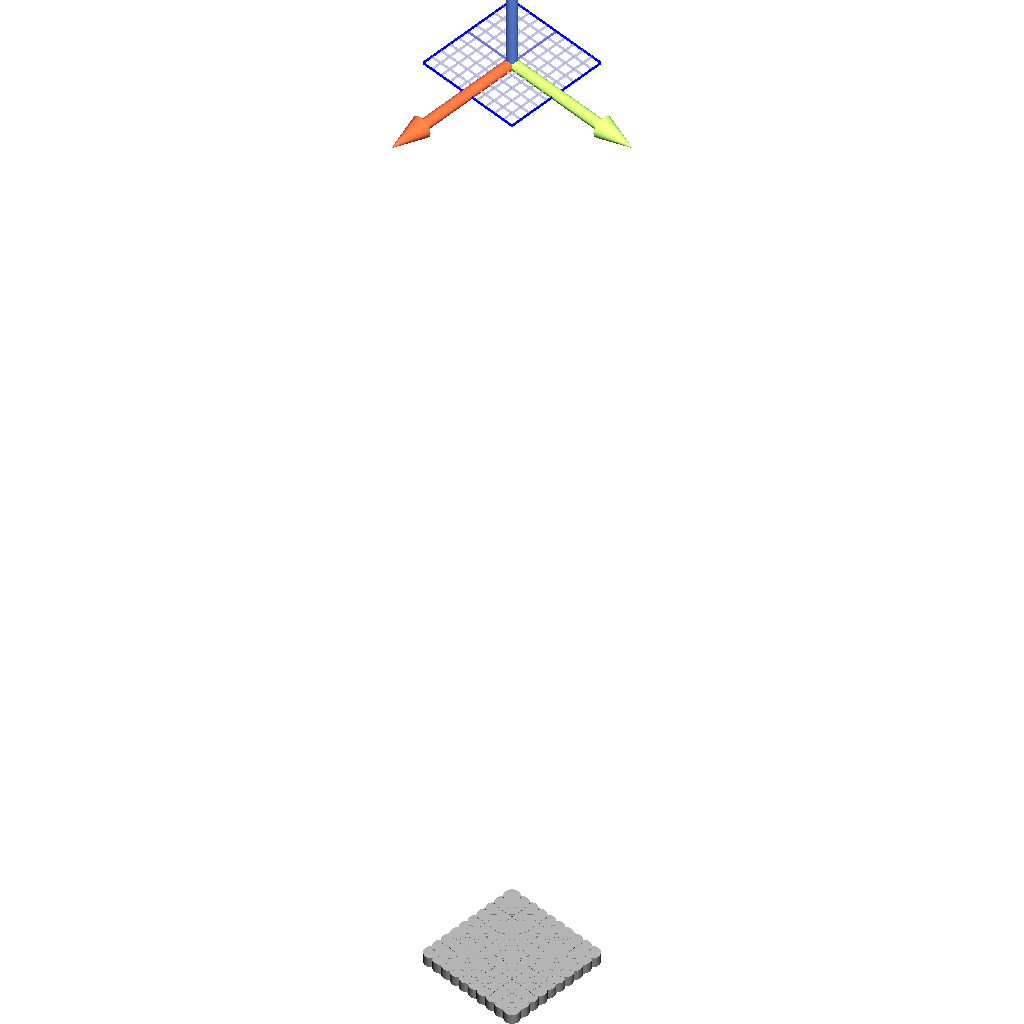

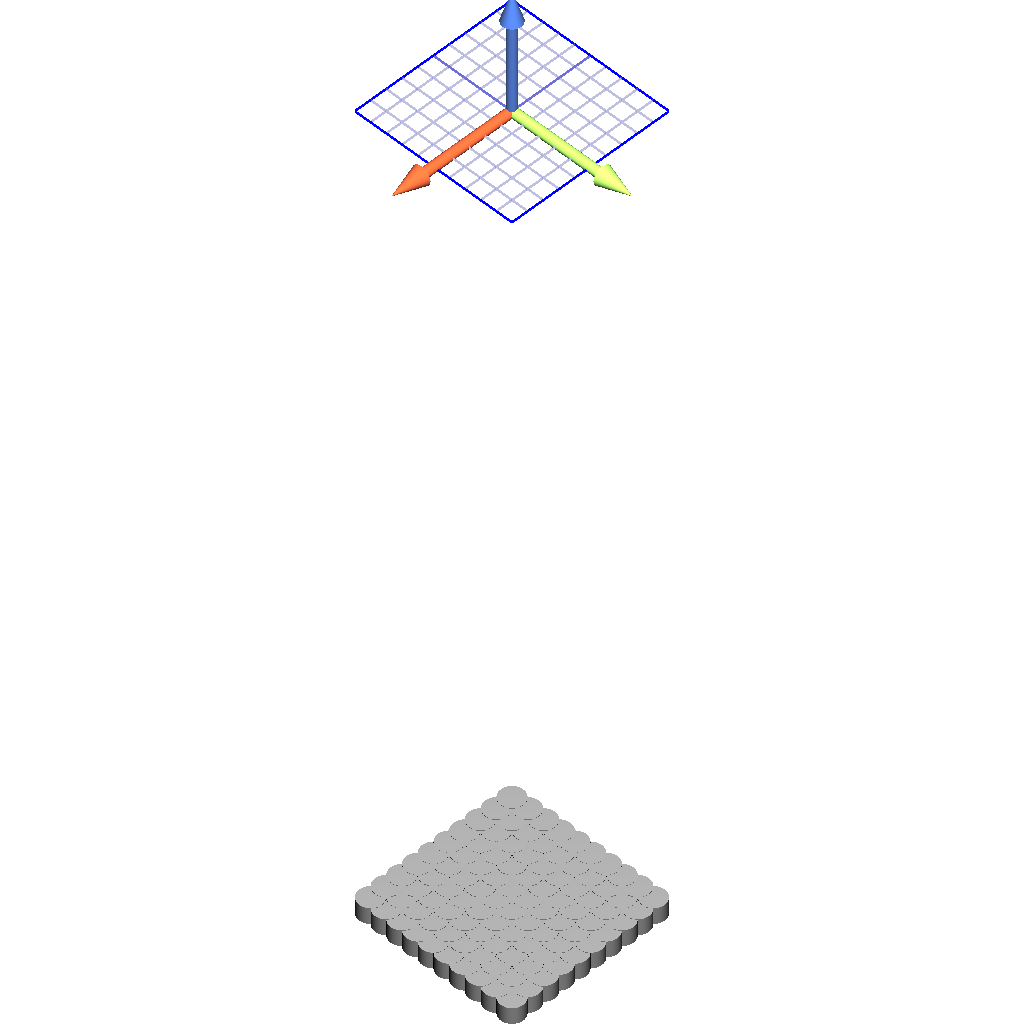

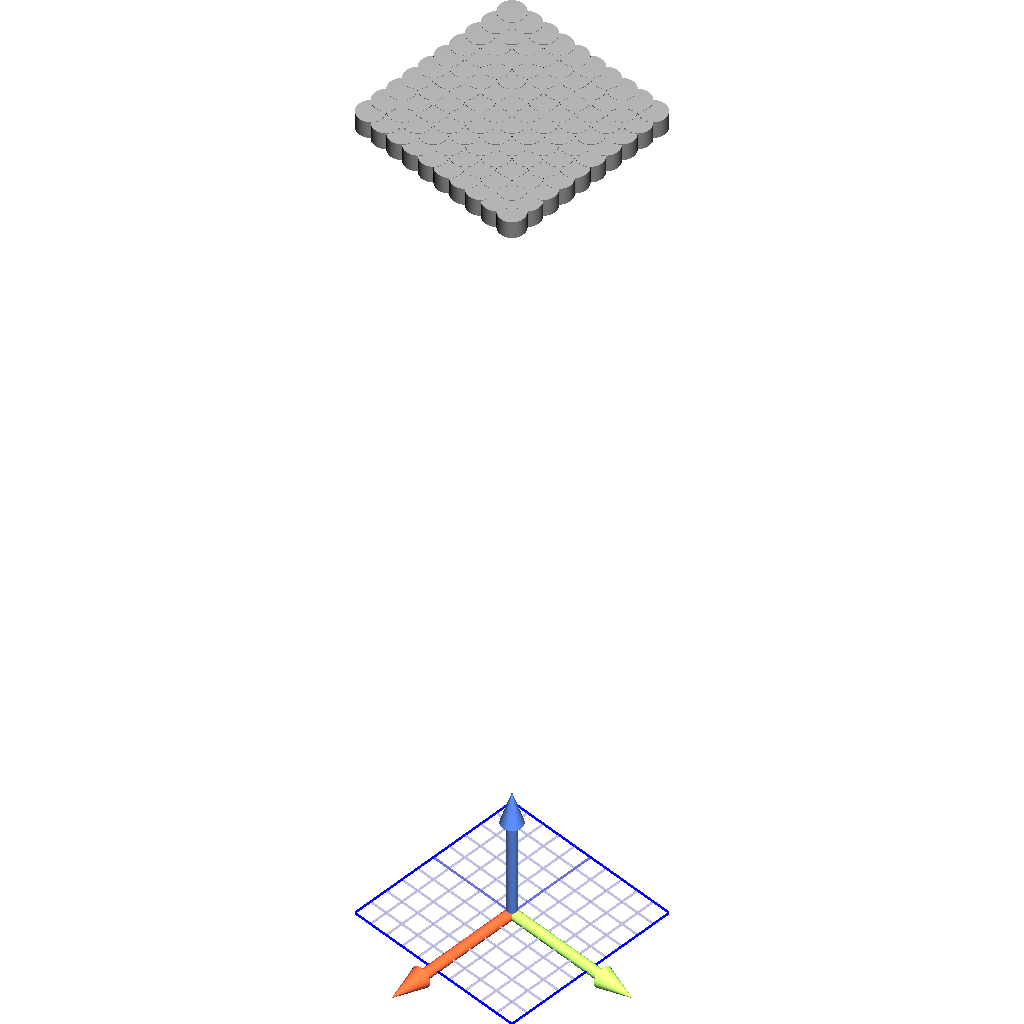

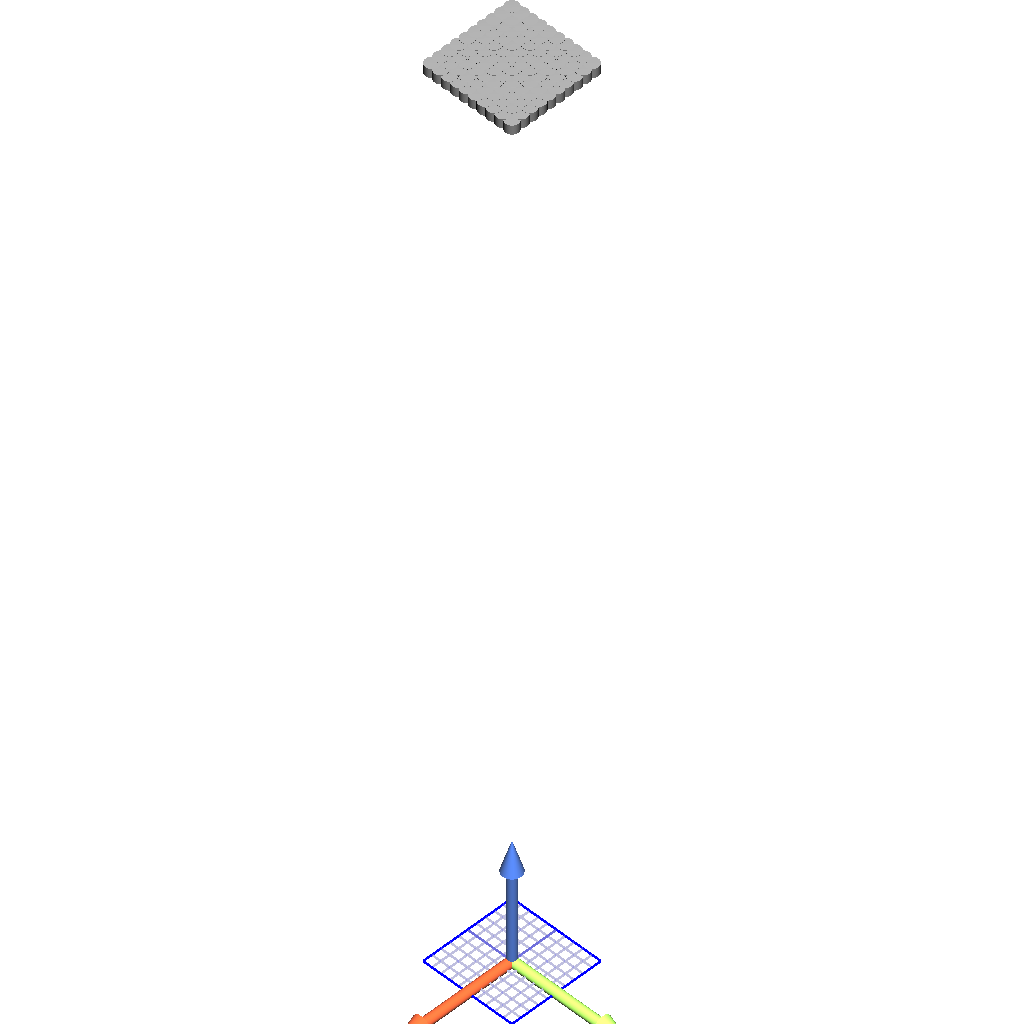

Reference frames

Optical surfaces

• inputFace: LensletArrayBoundary(Array(Conic(0.000000), 10, 10), DielectricEMInterface)

• outputFace: LensletArrayBoundary(Array(Conic(0.000000), 10, 10), DielectricEMInterface)
