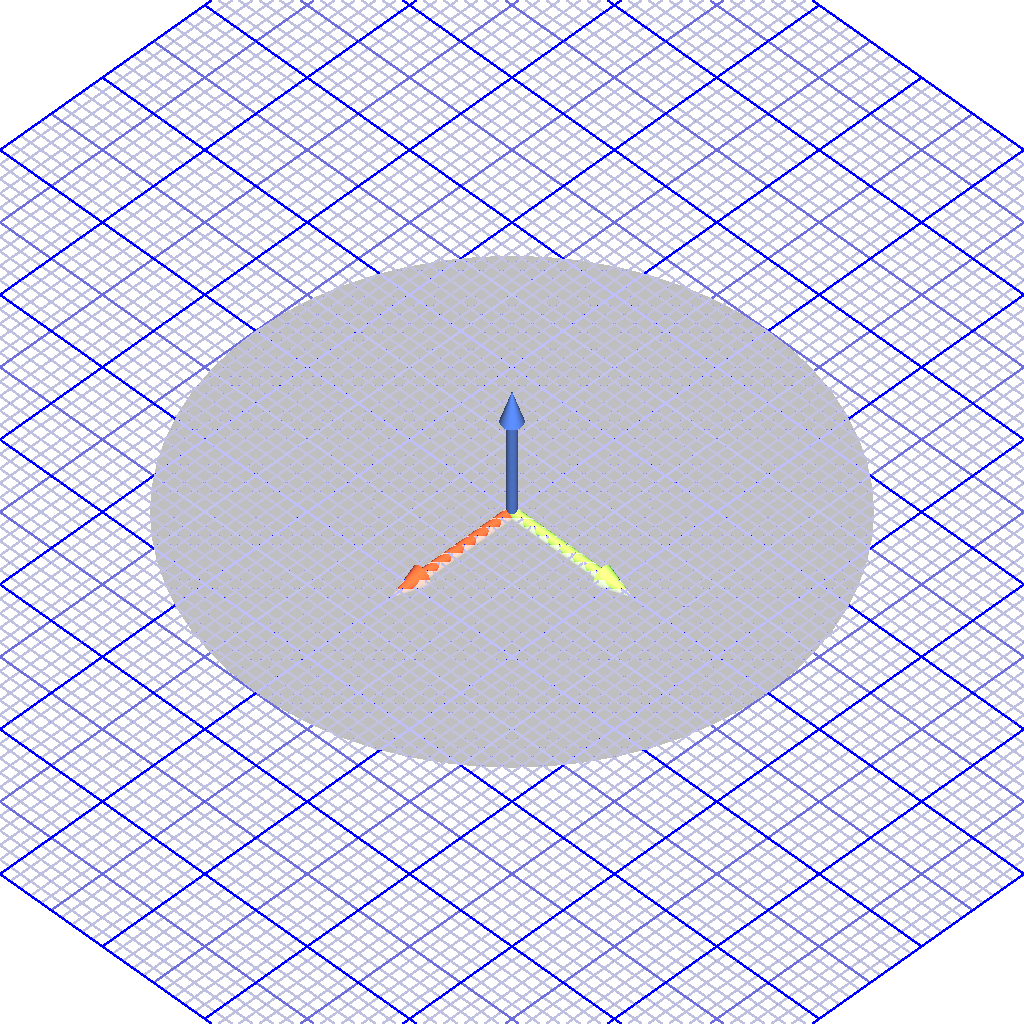

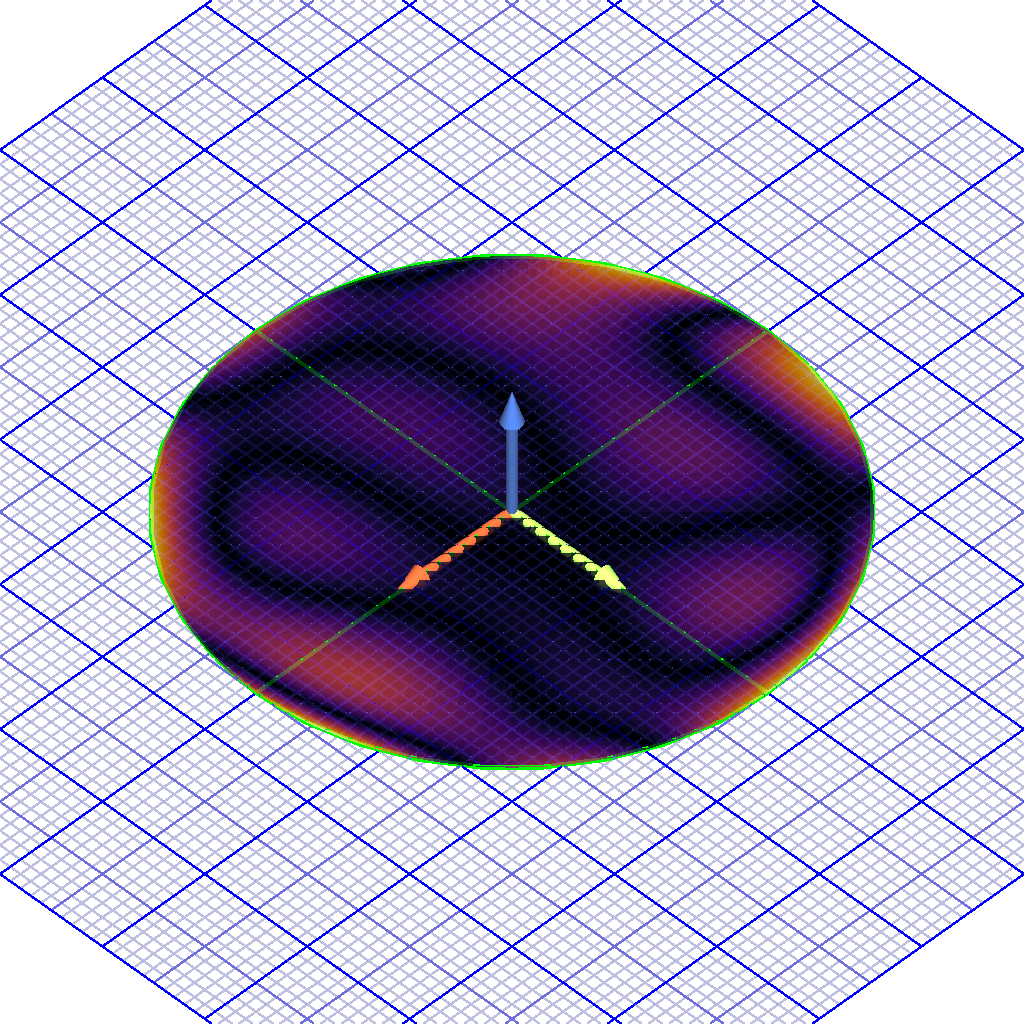

Circular phase screen with irregular height described through Zernike polynomials.
Specialization of OpticalElement
| Name | Description | Default | Units |
|---|---|---|---|
Z0 | Coefficient for polynomial $Z_{0}$ | 0.0 | m |
Z1 | Coefficient for polynomial $Z_{1}$ | 0.0 | m |
Z2 | Coefficient for polynomial $Z_{2}$ | 0.0 | m |
Z3 | Coefficient for polynomial $Z_{3}$ | 0.0 | m |
Z4 | Coefficient for polynomial $Z_{4}$ | 0.0 | m |
Z5 | Coefficient for polynomial $Z_{5}$ | 0.0 | m |
Z6 | Coefficient for polynomial $Z_{6}$ | 0.0 | m |
Z7 | Coefficient for polynomial $Z_{7}$ | 0.0 | m |
Z8 | Coefficient for polynomial $Z_{8}$ | 0.0 | m |
Z9 | Coefficient for polynomial $Z_{9}$ | 0.0 | m |
Z10 | Coefficient for polynomial $Z_{10}$ | 0.0 | m |
Z11 | Coefficient for polynomial $Z_{11}$ | 0.0 | m |
Z12 | Coefficient for polynomial $Z_{12}$ | 0.0 | m |
Z13 | Coefficient for polynomial $Z_{13}$ | 0.0 | m |
Z14 | Coefficient for polynomial $Z_{14}$ | 0.0 | m |
Z15 | Coefficient for polynomial $Z_{15}$ | 0.0 | m |
Z16 | Coefficient for polynomial $Z_{16}$ | 0.0 | m |
Z17 | Coefficient for polynomial $Z_{17}$ | 0.0 | m |
Z18 | Coefficient for polynomial $Z_{18}$ | 0.0 | m |
Z19 | Coefficient for polynomial $Z_{19}$ | 0.0 | m |
Z20 | Coefficient for polynomial $Z_{20}$ | 0.0 | m |
Z21 | Coefficient for polynomial $Z_{21}$ | 0.0 | m |
Z22 | Coefficient for polynomial $Z_{22}$ | 0.0 | m |
Z23 | Coefficient for polynomial $Z_{23}$ | 0.0 | m |
Z24 | Coefficient for polynomial $Z_{24}$ | 0.0 | m |
Z25 | Coefficient for polynomial $Z_{25}$ | 0.0 | m |
Z26 | Coefficient for polynomial $Z_{26}$ | 0.0 | m |
Z27 | Coefficient for polynomial $Z_{27}$ | 0.0 | m |
Z28 | Coefficient for polynomial $Z_{28}$ | 0.0 | m |
Z29 | Coefficient for polynomial $Z_{29}$ | 0.0 | m |
Z30 | Coefficient for polynomial $Z_{30}$ | 0.0 | m |
Z31 | Coefficient for polynomial $Z_{31}$ | 0.0 | m |
Z32 | Coefficient for polynomial $Z_{32}$ | 0.0 | m |
Z33 | Coefficient for polynomial $Z_{33}$ | 0.0 | m |
Z34 | Coefficient for polynomial $Z_{34}$ | 0.0 | m |
Z35 | Coefficient for polynomial $Z_{35}$ | 0.0 | m |
Z36 | Coefficient for polynomial $Z_{36}$ | 0.0 | m |
Z37 | Coefficient for polynomial $Z_{37}$ | 0.0 | m |
Z38 | Coefficient for polynomial $Z_{38}$ | 0.0 | m |
Z39 | Coefficient for polynomial $Z_{39}$ | 0.0 | m |
Z40 | Coefficient for polynomial $Z_{40}$ | 0.0 | m |
Z41 | Coefficient for polynomial $Z_{41}$ | 0.0 | m |
Z42 | Coefficient for polynomial $Z_{42}$ | 0.0 | m |
Z43 | Coefficient for polynomial $Z_{43}$ | 0.0 | m |
Z44 | Coefficient for polynomial $Z_{44}$ | 0.0 | m |
Z45 | Coefficient for polynomial $Z_{45}$ | 0.0 | m |
Z46 | Coefficient for polynomial $Z_{46}$ | 0.0 | m |
Z47 | Coefficient for polynomial $Z_{47}$ | 0.0 | m |
Z48 | Coefficient for polynomial $Z_{48}$ | 0.0 | m |
Z49 | Coefficient for polynomial $Z_{49}$ | 0.0 | m |
Z50 | Coefficient for polynomial $Z_{50}$ | 0.0 | m |
Z51 | Coefficient for polynomial $Z_{51}$ | 0.0 | m |
Z52 | Coefficient for polynomial $Z_{52}$ | 0.0 | m |
Z53 | Coefficient for polynomial $Z_{53}$ | 0.0 | m |
Z54 | Coefficient for polynomial $Z_{54}$ | 0.0 | m |
Z55 | Coefficient for polynomial $Z_{55}$ | 0.0 | m |
Z56 | Coefficient for polynomial $Z_{56}$ | 0.0 | m |
Z57 | Coefficient for polynomial $Z_{57}$ | 0.0 | m |
Z58 | Coefficient for polynomial $Z_{58}$ | 0.0 | m |
Z59 | Coefficient for polynomial $Z_{59}$ | 0.0 | m |
radius | Radius of the phase screen | 0.025 | m |
diameter | Diameter of the phase screen | 0.05 | m |
ni | Input refractive index | 1.0 | |
no | Output refractive index | 1.5 | |
blue | Blue channel of the solid color of the element | 0.25 | 0..1 |
green | Green channel of the solid color of the element | 0.25 | 0..1 |
red | Red channel of the solid color of the element | 0.25 | 0..1 |
shiny | Specular component intensity | 63 | 0..127 |
specBlue | Blue channel of the specular color of the element | 0.25 | 0..1 |
specGreen | Green channel of the specular color of the element | 0.25 | 0..1 |
specRed | Red channel of the specular color of the element | 0.25 | 0..1 |
