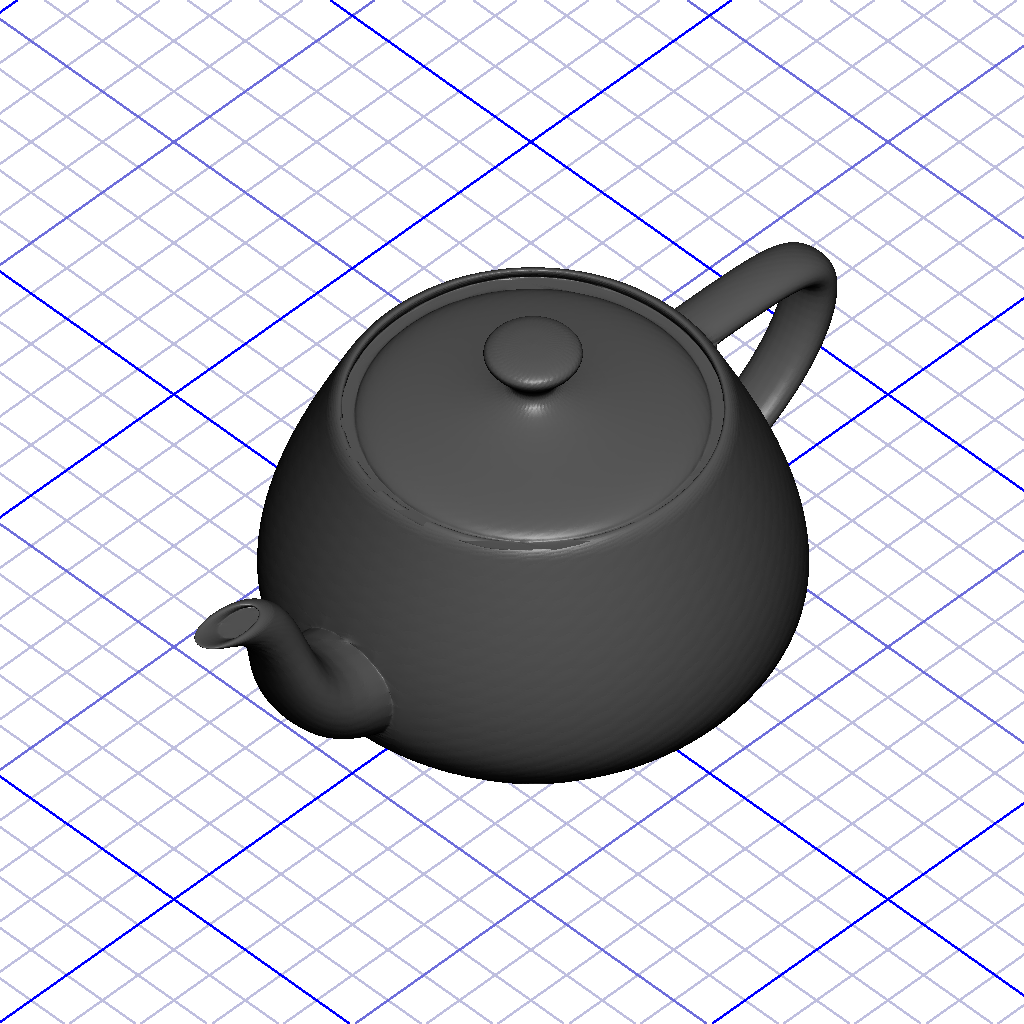

Arbitrary mesh from a STL file.
Specialization of Element
| Name | Description | Default | Units |
|---|---|---|---|
file | Path of the STL mesh | ||
units | Physical length of the units of the STL mesh | 0.001 | m |
blue | Blue channel of the solid color of the element | 0.25 | 0..1 |
green | Green channel of the solid color of the element | 0.25 | 0..1 |
red | Red channel of the solid color of the element | 0.25 | 0..1 |
shiny | Specular component intensity | 63 | 0..127 |
specBlue | Blue channel of the specular color of the element | 0.25 | 0..1 |
specGreen | Green channel of the specular color of the element | 0.25 | 0..1 |
specRed | Red channel of the specular color of the element | 0.25 | 0..1 |
