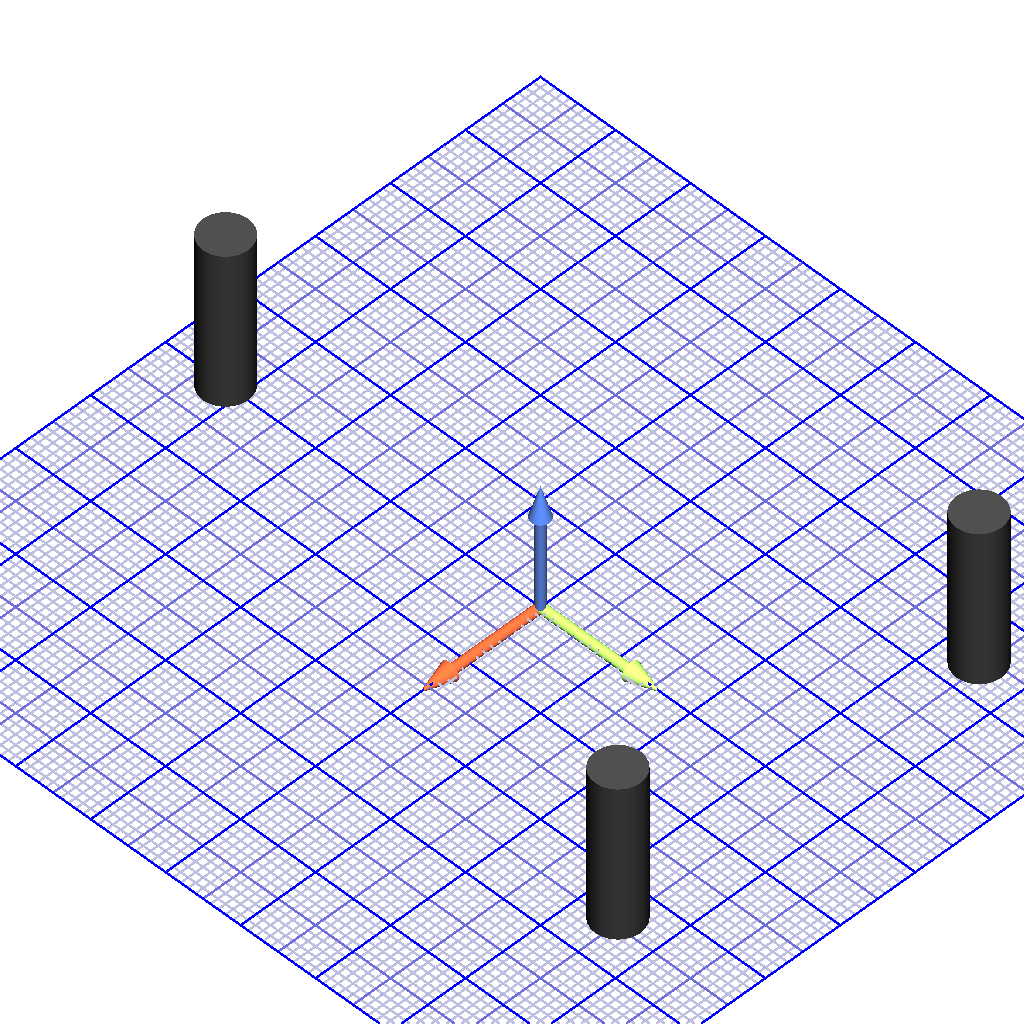

Tripod

Flat mount supported by 3 legs with adjustable heights, forming an isosceles triangle.

Specialization of Element

Properties

Name	Description	Default	Units
Tripod
leg1	Height of the first leg	0.02
leg2	Height of the second leg	0.02
leg3	Height of the third leg	0.02
radius	Radius of the circumscribing circle	0.042	m
diameter	Diameter of the circumscribing circle	0.084	m
angle	Angle of the vertex of the triangle	70	deg
legDiameter	Diameter of the legs	0.006	m
Element
blue	Blue channel of the solid color of the element	0.25	0..1
green	Green channel of the solid color of the element	0.25	0..1
red	Red channel of the solid color of the element	0.25	0..1
shiny	Specular component intensity	63	0..127
specBlue	Blue channel of the specular color of the element	0.25	0..1
specGreen	Green channel of the specular color of the element	0.25	0..1
specRed	Red channel of the specular color of the element	0.25	0..1

Reference frames
