RZ::RayBeam Struct Reference

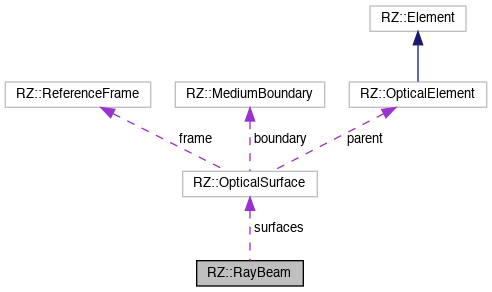

Collaboration diagram for RZ::RayBeam:

Public Member Functions

bool isChief (uint64_t index) const

bool isIntercepted (uint64_t index) const

bool hasRay (uint64_t index) const

void prune (uint64_t c)

void pruneAll ()

void uninterceptAll ()

void intercept (uint64_t c)

bool setChiefRay (uint64_t c)

bool unsetsetChiefRay (uint64_t c)

bool hadRay (uint64_t index) const

void copyRay (const RayBeam *existing, uint64_t index)

virtual void allocate (uint64_t)

virtual void deallocate ()

template<class T >
void extractRays (T &dest, uint32_t mask, OpticalSurface *current=nullptr, RayBeamSlice const &beam=RayBeamSlice())

void clearMask ()

void computeInterceptStatistics (OpticalSurface *=nullptr)

void updateOrigins ()

void toRelative (const ReferenceFrame *plane)

void toRelative (RayBeam *, const ReferenceFrame *plane) const

void fromRelative (const ReferenceFrame *plane)

void fromSurfaceRelative ()

void walk (OpticalSurface *, const std::function< void(OpticalSurface *, RayBeamSlice const &)> &f)

uint64_t updateFromVisible (const OpticalSurface *, const RayBeam *)

 RayBeam (uint64_t, bool mediumBoundaries=false)

template<class C >
void extractRays (C &dest, RayBeamSlice const &slice, uint32_t mask, OpticalSurface *surface, RayBeamSlice const &exclude)

template<class C >
void extractRays (C &dest, uint32_t mask, OpticalSurface *surf, RayBeamSlice const &slice)


Static Public Member Functions

template<class T >
static void extractRays (T &dest, RayBeamSlice const &slice, uint32_t mask, OpticalSurface *current=nullptr, RayBeamSlice const &beam=RayBeamSlice())


Public Attributes

uint64_t count = 0

uint64_t allocation = 0

bool nonSeq = false

Real * origins = nullptr

Real * directions = nullptr

Real * destinations = nullptr

Complex * amplitude = nullptr

Real * lengths = nullptr

Real * cumOptLengths = nullptr

Real * normals = nullptr

Real * wavelengths = nullptr

Real * refNdx = nullptr

uint32_t * ids = nullptr

uint64_t * mask = nullptr

uint64_t * intMask = nullptr

uint64_t * prevMask = nullptr

uint64_t * chiefMask = nullptr

OpticalSurface ** surfaces = nullptr


The documentation for this struct was generated from the following files:
